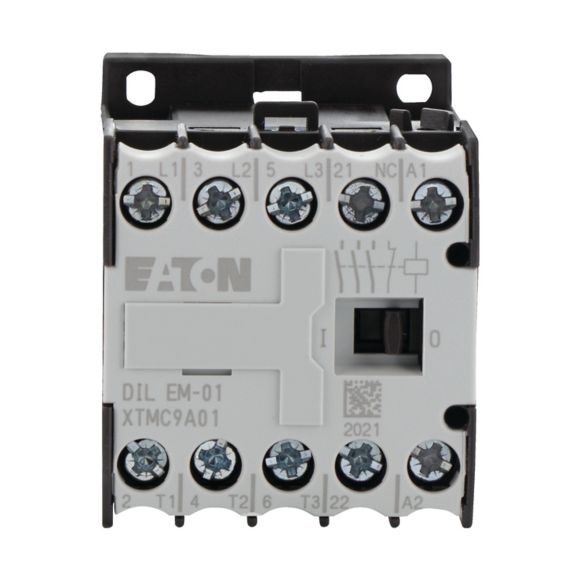

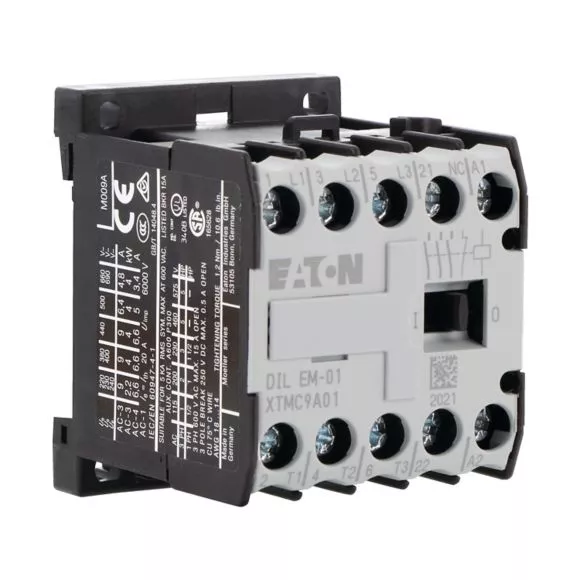

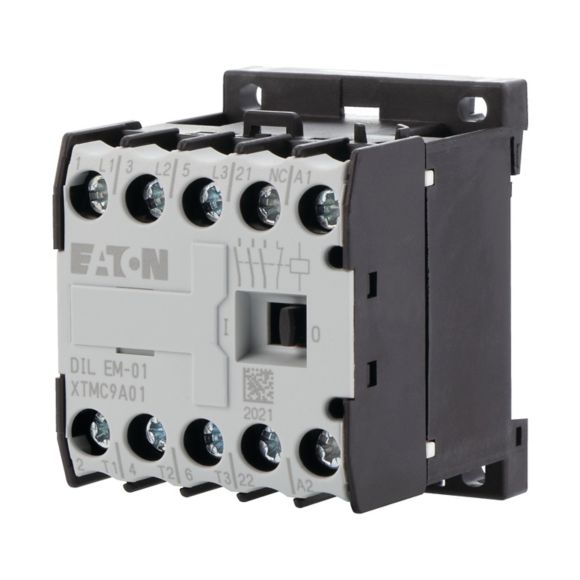

DILEM-01-G(110VDC) mały stycznik AC-3/I=9A P=4kW/ 0Z 1R
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 010136 |
| GTIN(EAN) | 4015080101369 |
| Price unit | piece |
| Catalog price | 325,09 zł (264,30 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Stycznik mocy, zgodnie z IEC/EN60947, 3-biegunowy, z połączeniami śrubowymi, możliwość rozbudowy o maksymalnie 4 łączników pomocniczych, z 1 łącznikami pomocniczymi jako zestyk wymuszony, zintegrowane połączenie ochronne, mocowanie na śruby i zaciski, ui 690V, stopień ochrony IP20, zabezpieczenie przed dotknięciem zgodnie z VDE 0106 cz. 100, trwałość 10 mln cyklów łączenia mechanicznego, dostępne akcesoria: moduły łączników pomocniczych, układy ochronne, zwory punktu gwiazdowego, łączni równoległy, komplet okablowania, blokada mechaniczna
Additional features:
| Information | Value |
|---|---|
| Net weight: | 206 g |
| Country of origin | Niemcy |
| ETIM class: | Power contactor, AC switching |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 110 - 110 V |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 22 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Rated operation current Ie at AC-4, 400 V: | 6.6 A |
| Rated operation power at AC-4, 400 V: | 3 kW |
| Rated operation power NEMA: | 3.7 kW |
| Modular version: | no |
| Number of auxiliary contacts as normally open contact: | 0 |
| Number of auxiliary contacts as normally closed contact: | 1 |
| Type of electrical connection of main circuit: | Screw connection |
| Number of normally closed contacts as main contact: | 0 |
| Number of normally open contacts as main contact: | 3 |
| Operating voltage AC 50 Hz: | 24 - 690 V |
| Operating voltage AC 60 Hz: | 24 - 690 V |
| Width: | 45 mm |
| Height: | 58 mm |
| Depth: | 54 mm |
