K12X5/25 Zaciski szyn zbiorczych do CU 12x5
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 002324 |
| GTIN(EAN) | 4015080023241 |
| Price unit | piece |
| Catalog price | 41,70 zł (33,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

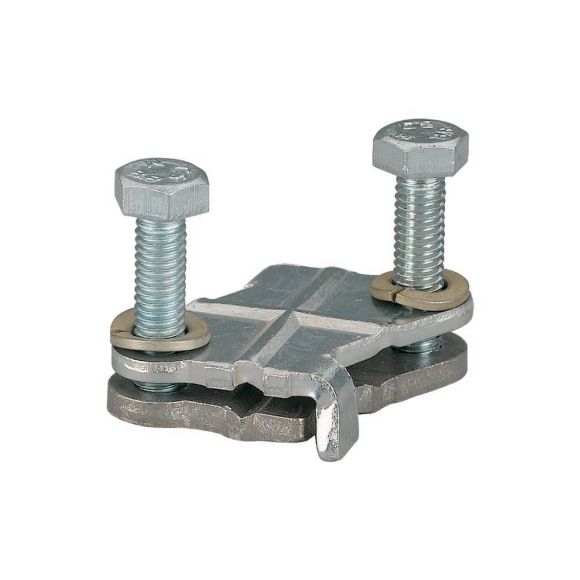

Zacisk na płaską szynę miedzianą, przekrój przyłącza przewodu okrągłego=re 1.5-10 lub rf 1.5-6mmkw, przekrój przyłącza przewodu taśmowego=3x9x0.8 lub 6x9x0.8 lub 4x16x0.8 lub 6x16x0.8, do szyn Cu 12x5, znamionowy prąd pracy Ie=250A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 45 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 5 - 5 mm |
| Busbar width: | 12 - 12 mm |
| Suitable for: | Flat rail |
| Width clamp: | 0 mm |
| Max. conductor cross section: | 74 mm² |
| Max. rated operation current Ie: | 250 A |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
