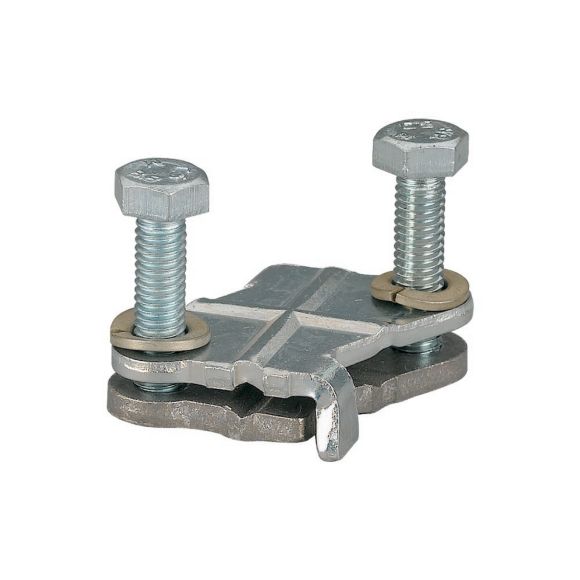

K20X15/40 Zaciski szyn zbiorczych do CU 20x5(x10,
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 002285 |
| GTIN(EAN) | 4015080022855 |
| Price unit | piece |
| Catalog price | 71,09 zł (57,80 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zacisk na płaską szynę miedzianą, przekrój przyłącza przewodu okrągłego=re 1.5-10 lub rf 1.5-6mmkw, przekrój przyłącza przewodu taśmowego=3x9x0.8 lub 6x9x0.8 lub 4x16x0.8 lub 6x16x0.8 lub 10x16x0.8 lub 11x21x1, do szyn Cu 20x10 / 20x15, znamionowy prąd pracy Ie=630A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 72 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 5 - 10 mm |
| Busbar width: | 20 - 20 mm |
| Suitable for: | Flat rail |
| Width clamp: | 32 mm |
| Max. conductor cross section: | 124 mm² |
| Max. rated operation current Ie: | 400 A |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
