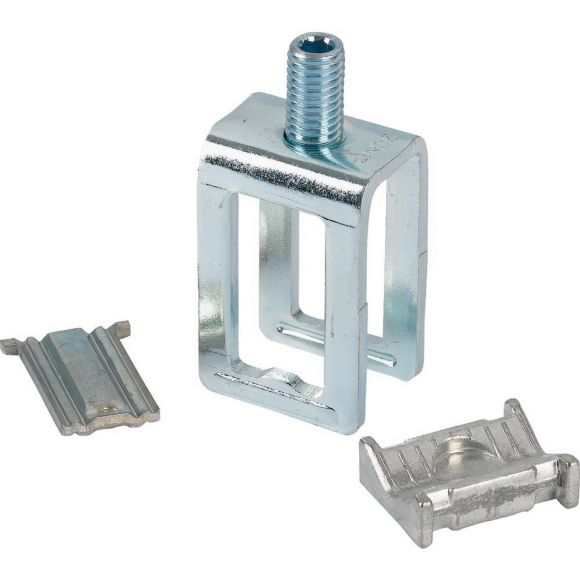

K20X10 Zaciski szyn zbiorczych do CU 20x5(x10,
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 002283 |
| GTIN(EAN) | 4015080022831 |
| Price unit | piece |
| Catalog price | 147,23 zł (119,70 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Zaciski do szyn zbiorczych, do obudowy szyn zbiorczych Cl, przyłącze przewodu taśmowego lub okrągłego, zastosowanie do szyn zbiorczych Cu 20x5, cu 20x10, cu 20x15, przekrój przyłącza przewodu taśmowego=3x9x0.8 do 11x21x1, przekrój przyłącza przewodu okrągłego=35-240, 35-185mm², znamionowy prąd pracy Ie=100A-630A
Additional features:
| Information | Value |
|---|---|
| Net weight: | 139 g |
| ETIM class: | Busbar terminal |
| Busbar thickness: | 5 - 10 mm |
| Busbar width: | 20 - 20 mm |
| Suitable for: | Flat rail |
| Width clamp: | 38 mm |
| Max. conductor cross section: | 240 mm² |
| Max. rated operation current Ie: | 630 A |
| Suitable for round conductor connection: | yes |
| Suitable for sector conductor connection: | no |
| Suitable for strip conductor connection: | yes |
