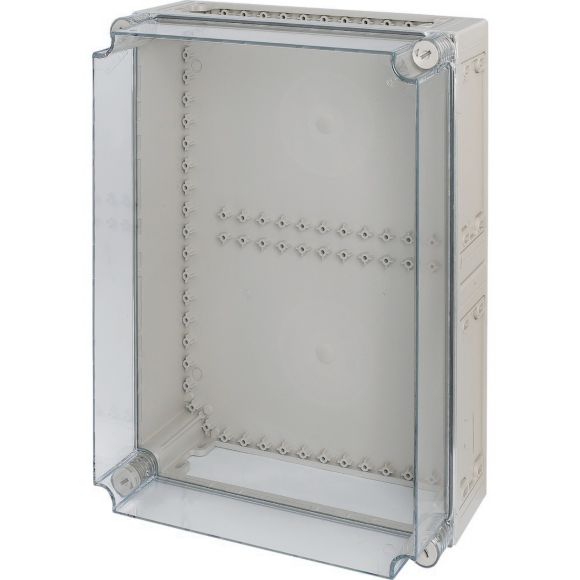

CI45-200 Obudowa rozdzielnicy otwarta od góry + o
Information | Value |
---|---|
Supplier | EATON Electric Sp. z o.o. (MOELLER) |
Symbol | 001896 |
GTIN(EAN) | 4015080018964 |
Price unit | piece |
Catalog price | 2 915,10 zł (2 370,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Obudowa bez wyposażenia, charakterystyka materiału Poliwęglan (PC), odporność na porażenia, stopień ochrony IP65, opatentowane zamknięcie pokrywy z wbudowanym wyrównaniem nadciśnienia, ściany boczne zamknięte, wybijana, ściany otwarte na górze i na dole, plombowane zamknięcia pokrywy, RAL 7032, piaskowa (skrzynia dolna), przezroczysta, bezbarwna (pokrywa), głębokość montażu przy płyci montażowej=200mm, wersja pokrywy: przezroczysta, wersja części dolnej: na górze i na dole otwarta
Additional features:
Information | Value |
---|---|
Net weight: | 3,828 kg |
Country of origin | Finlandia |
ETIM class: | Empty cabinet |
Mounting method: | Surface mounted |
Type of covering: | Optional |
Cover model: | Closed |
Type of door: | None |
Transparent cover/door: | yes |
Nominal current (In): | 1600 A |
Height: | 500 mm |
Width: | 375 mm |
Depth: | 225 mm |
Built-in depth: | 200 mm |
Inner depth: | 200 mm |
Material plate thickness cabinet: | 6 mm |
Material plate thickness door/cover: | 6 mm |
Colour: | Grey |
RAL-number: | 7035 |
Number of modules: | 1 |
Number of rows: | 0 |
Width in number of modular spacings: | 17 |
Number of openings for flange plates: | 6 |
Extension possible: | yes |
Number of conduit inlets: | 104 |
Housing material: | Plastic |
Surface protection: | Other |
Suitable for outdoor use: | yes |
Suitable for lightning protection: | yes |
Degree of protection (IP): | Other |
Degree of protection (NEMA): | Other |
Protection class: | II |
Impact strength: | IK10 |
Circuit integrity: | Other |
Cover with overpressure release: | yes |
With lock: | no |
With mounting plate: | no |
