U-CI45 Część dolna do obudowy CI45
| Information | Value |
|---|---|
| Supplier | EATON Electric Sp. z o.o. (MOELLER) |
| Symbol | 001894 |
| GTIN(EAN) | 4015080018940 |
| Price unit | piece |
| Catalog price | 1 016,47 zł (826,40 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

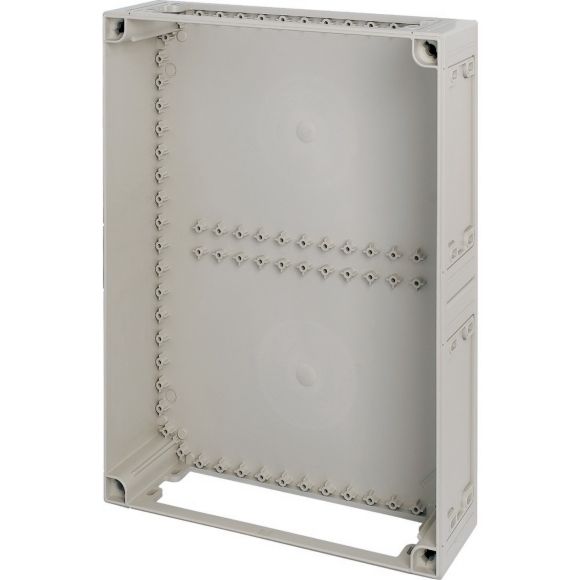

Część dolna obudowa rozdzielacza, charakterystyka materiału Poliwęglan (PC), odporność na porażenia, ściany boczne zamknięte, wyłamywana, ściany otwarte na górze i na dole, RAL 7032, W oddzielnej ofercie znajduje się obszerny zakres akcesoriów do budowy rozdzielaczy
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,632 kg |
| ETIM class: | Empty cabinet |
| Mounting method: | Surface mounted |
| Type of covering: | Optional |
| Cover model: | Closed |
| Type of door: | None |
| Transparent cover/door: | no |
| With lock: | no |
| Nominal current (In): | 1600 A |
| Height: | 500 mm |
| Width: | 375 mm |
| Depth: | 120 mm |
| Built-in depth: | 200 mm |
| Inner depth: | 100 mm |
| Material plate thickness cabinet: | 6 mm |
| Material plate thickness door/cover: | 6 mm |
| Colour: | Grey |
| RAL-number: | 7035 |
| Number of modules: | 1 |
| Number of rows: | 0 |
| Width in number of modular spacings: | 17 |
| Number of openings for flange plates: | 6 |
| Extension possible: | yes |
| Number of conduit inlets: | 104 |
| Housing material: | Plastic |
| Surface protection: | Other |
| With mounting plate: | no |
| Suitable for outdoor use: | yes |
| Suitable for lightning protection: | yes |
| Degree of protection (IP): | IP65 |
| Degree of protection (NEMA): | Other |
| Protection class: | II |
| Impact strength: | IK10 |
| Circuit integrity: | Other |
| Cover with overpressure release: | yes |
