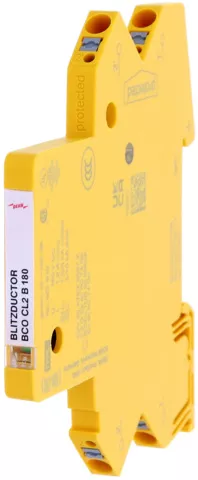

Ogranicznik przepięć BLITZDUCTORconnect CL2 B 180, kompaktowy BCO CL2 B 180
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 927910 |
| GTIN(EAN) | 4013364411739 |
| Price unit | piece |
| Catalog price | 325,19 zł (264,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 57,86 g |
| Country of origin | Niemcy |
| ETIM class: | Lightning current arrester for data networks/MCR-technology |
| Nominal voltage DC: | 180 V |
| Max. continuous voltage AC: | 127 V |
| Max. continuous voltage DC: | 180 V |
| Lightning impulse current (10/350 µs): | 3 kA |
| Nominal discharge surge current (8/20): | 10 kA |
| Nominal load current: | 1.2 A |
| Voltage protection level core/core: | 1100 V |
| Voltage protection level core/earth: | 800 V |
| Limiting frequency: | 300 MHz |
| Signalling at the device: | Optical |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Pro-active thermo-control: | yes |
| Connection 1: | Clamp |
| With remote signalling contact: | no |
| Explosion-tested version: | no |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
DEHN SE
Hans-Dehn-Str 1, 92318 Neumarkt, Niemcy
tel: + 49 9181 906-0 mail: info@dehn.de
www: dehn-international.com
|
| Updated: | 2024-12-19 15:02:14 |
| Files to download: |
|
| External links: |
