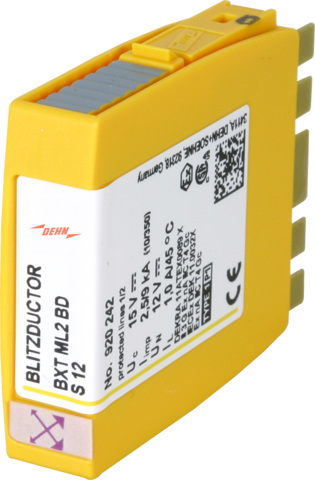

Moduł ochronny BXT ML2 BD S 12 do ogranicznika BLITZDUCTOR XT BXT ML2 BD S 12
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 920242 |
| GTIN(EAN) | 4013364118362 |
| Price unit | piece |
| Catalog price | 974,26 zł (792,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 27,6 g |
| Country of origin | Niemcy |
| ETIM class: | Combined arrester for data networks/MCR-technology |
| Nominal voltage DC: | 12.0 - 12.0 V |
| Max. continuous voltage AC: | 10.6 V |
| Max. continuous voltage DC: | 15 V |
| Lightning impulse current (10/350 µs): | 9 kA |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal load current: | 1 A |
| Voltage protection level core/core: | 19 V |
| Voltage protection level core/earth: | 550 V |
| Limiting frequency: | 2.8 MHz |
| Mounting method: | On basic element |
| Connection 1: | Screw terminal |
| Pro-active thermo-control: | yes |
| With remote signalling contact: | no |
| Explosion-tested version: | yes |
| Signal disconnection: | no |
| Number of conductors (without earthing): | 2 |
| Earthing via: | DIN rail (top hat rail) |

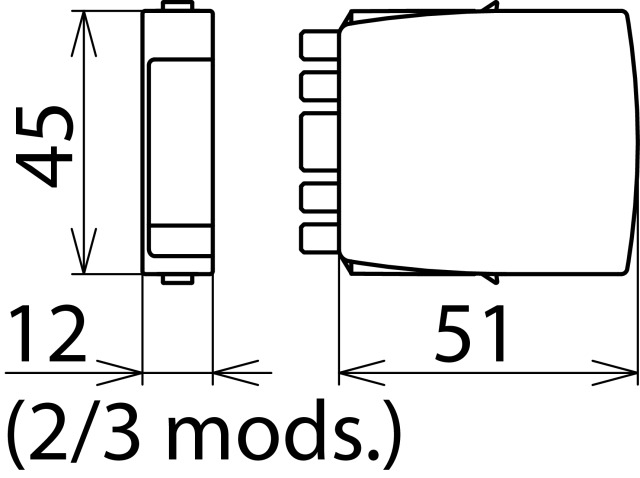

| Assembly width: | 12 mm |
| Degree of protection (IP): | IP20 |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
DEHN SE
Hans-Dehn-Str 1, 92318 Neumarkt, Niemcy
tel: + 49 9181 906-0 mail: info@dehn.de
www: dehn-international.com
|
| Updated: | 2024-12-19 15:02:14 |
| Files to download: |
|
| External links: |
