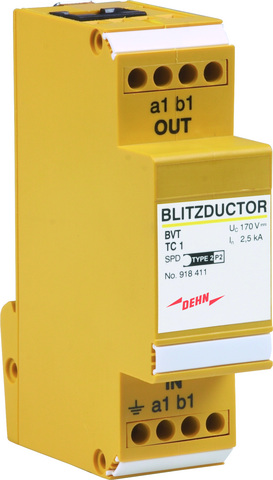

Ogranicznik przepięć BLITZDUCTOR VT TC 1 BVT TC 1
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 918411 |
| GTIN(EAN) | 4013364093133 |
| Price unit | piece |
| Catalog price | 811,69 zł (659,91 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 110,9 g |
| Country of origin | Rumunia |
| ETIM class: | Surge protection device for data networks/MCR-technology |
| Nominal voltage DC: | 130.0 - 130.0 V |
| Max. continuous voltage DC: | 170 V |
| Nominal discharge surge current (8/20): | 5 kA |
| Lightning impulse current (10/350 µs): | 1 kA |
| Nominal load current: | 0.2 A |
| Voltage protection level core/core: | 240 V |
| Voltage protection level core/earth: | 600 V |
| Limiting frequency: | 17 MHz |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Connection 1: | Terminal/RJ45 |
| Pro-active thermo-control: | no |
| With remote signalling contact: | no |
| Explosion-tested version: | no |
| Signal disconnection: | no |
| Number of conductors (without earthing): | 2 |
| Earthing via: | Separate conductor |
| Assembly width: | 27 mm |
| Degree of protection (IP): | IP10 |
