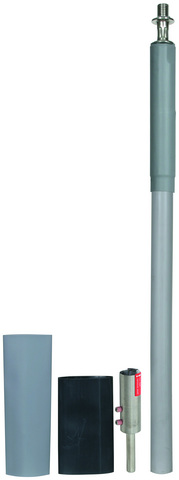

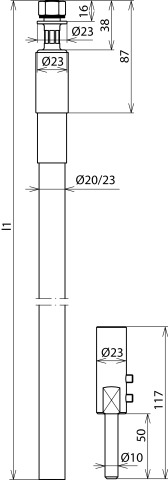

Przewód HVI o śr. 23 mm, do układania na zewnątrz rury wsporczej, kolor szary, dł. 6 m HVI RAV 75 23 L6M GR M
| Information | Value |
|---|---|
| Supplier | DEHN Polska Sp. z o.o. |
| Symbol | 819227 |
| GTIN(EAN) | 4013364157712 |
| Price unit | piece |
| Catalog price | 4 904,55 zł (3 987,44 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 5,2 kg |
| ETIM class: | Round conductor/wire for lightning protection |
| Diameter conductor: | 5 mm |
| Conductor cross section: | 19 mm² |
| Outer diameter incl. sheat/cover: | 23 mm |
| Conductor category: | Class 2 = stranded |
| Number of strands: | 1 |
| Conductor material: | Copper |
| Surface protection: | Untreated |
| Sheathing material: | Crosslinked polyethylene (XLPE) |
| Sheathing material halogen free: | no |
| Colour: | Grey |
| Material insulation: | Polyethylene (PE) |
| Max. equivalent separation distance s (in air): | 0.75 m |
| Max. equivalent separation distance s (solid building materials): | 1.5 m |
| High-voltage-proof insulated model: | yes |
| Max. tensile load: | 950 N |
| Suitable for EX-applications: | yes |
| Weight: | 66.6 kg/100m |
