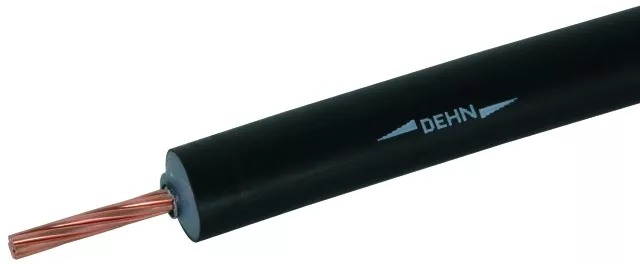

Przewód HVI long, śr. 20 mm, kolor czarny, dł. wg zamówienia (min. 6 m) HVI LO 75 20 L... SW M
Information | Value |
---|---|
Supplier | DEHN Polska Sp. z o.o. |
Symbol | 819131 |
GTIN(EAN) | 4013364223189 |
Price unit | piece |
Catalog price | 3 527,32 zł (2 867,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Gross weight: | 4,215 kg |
ETIM class: | Round conductor/wire for lightning protection |
Diameter conductor: | 5 mm |
Conductor cross section: | 19 mm² |
Outer diameter incl. sheat/cover: | 20 mm |
Conductor category: | Class 2 = stranded |
Number of strands: | 7 |
Conductor material: | Copper |
Surface protection: | Untreated |
Sheathing material: | Crosslinked polyethylene (XLPE) |
Sheathing material halogen free: | no |
Colour: | Black |
Material insulation: | Polyethylene (PE) |
Max. equivalent separation distance s (in air): | 0.75 m |
Max. equivalent separation distance s (solid building materials): | 1.5 m |
High-voltage-proof insulated model: | yes |
Max. tensile load: | 950 N |
Suitable for EX-applications: | yes |
Weight: | 48 kg/100m |
