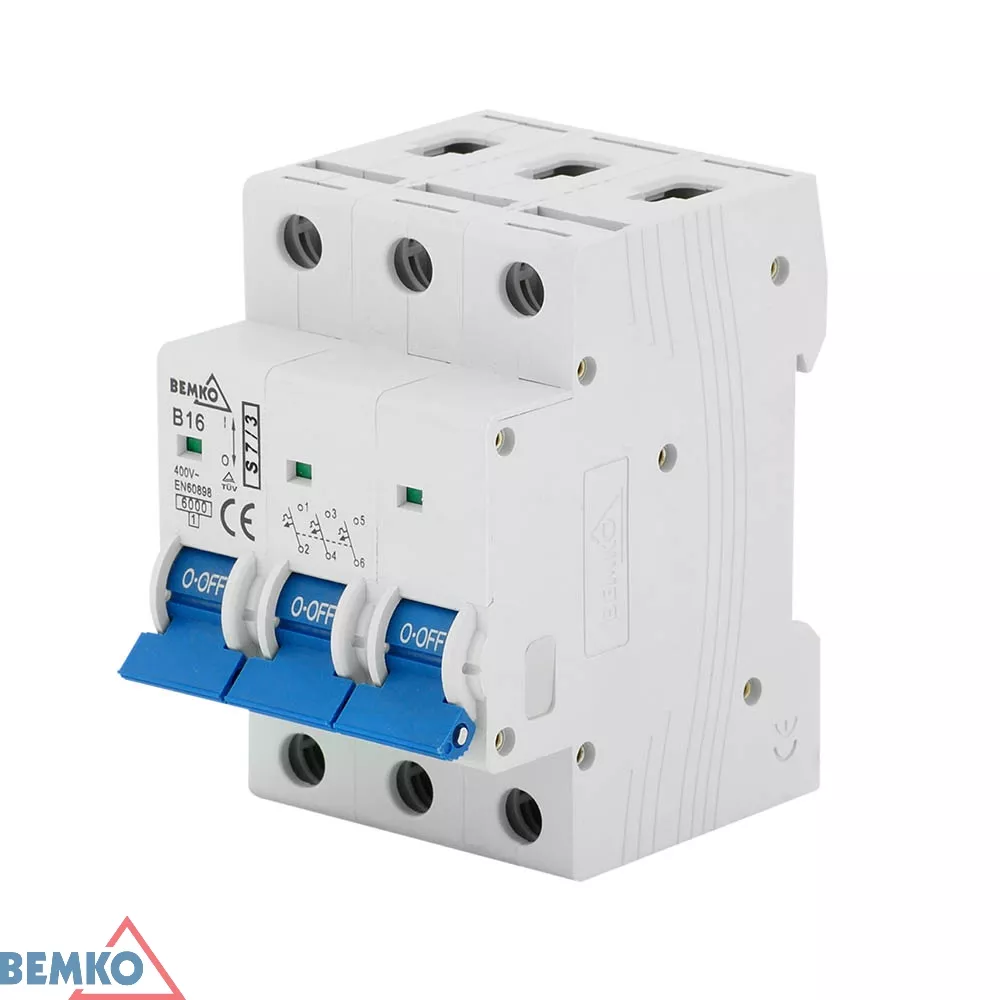

WYŁĄCZNIK NADPRĄDOWY 6KA 3P B 16A
| Information | Value |
|---|---|
| Supplier | BEMKO Sp. z o.o. |
| Series | S7 |
| Symbol | S-A00-S7-3P-B16 |
| GTIN(EAN) | 5908311361573 |
| Price unit | piece |
| Catalog price | 51,84 zł (42,15 zł + 23% VAT) |
| Sale price | from 17,47 zł / szt. (14,20 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 315 g |
| Gross weight: | 300 g |
| ETIM class: | Miniature circuit breaker (MCB) |
| Built-in depth: | 50 mm |
| Release characteristic: | B |
| Number of poles (total): | 3 |
| Number of protected poles: | 3 |
| Rated current: | 16 A |
| Rated voltage: | 230 V |
| Rated insulation voltage Ui: | 300 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V: | 6 kA |
| Voltage type: | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V: | 6 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V: | 6 kA |
| Frequency: | 50 - 60 Hz |
| Current limiting class: | 1 |
| Flush-mounted installation: | yes |
| Concurrently switching neutral conductor: | no |
| Over voltage category: | 3 |
| Pollution degree: | 2 |
| Additional equipment possible: | no |
| Width in number of modular spacings: | 1 |
| Degree of protection (IP): | IP20 |
| Ambient temperature during operating: | -5 - 40 °C |
| Connectable conductor cross section multi-wired: | 5 - 16 mm² |
| Connectable conductor cross section solid-core: | 5 - 25 mm² |
