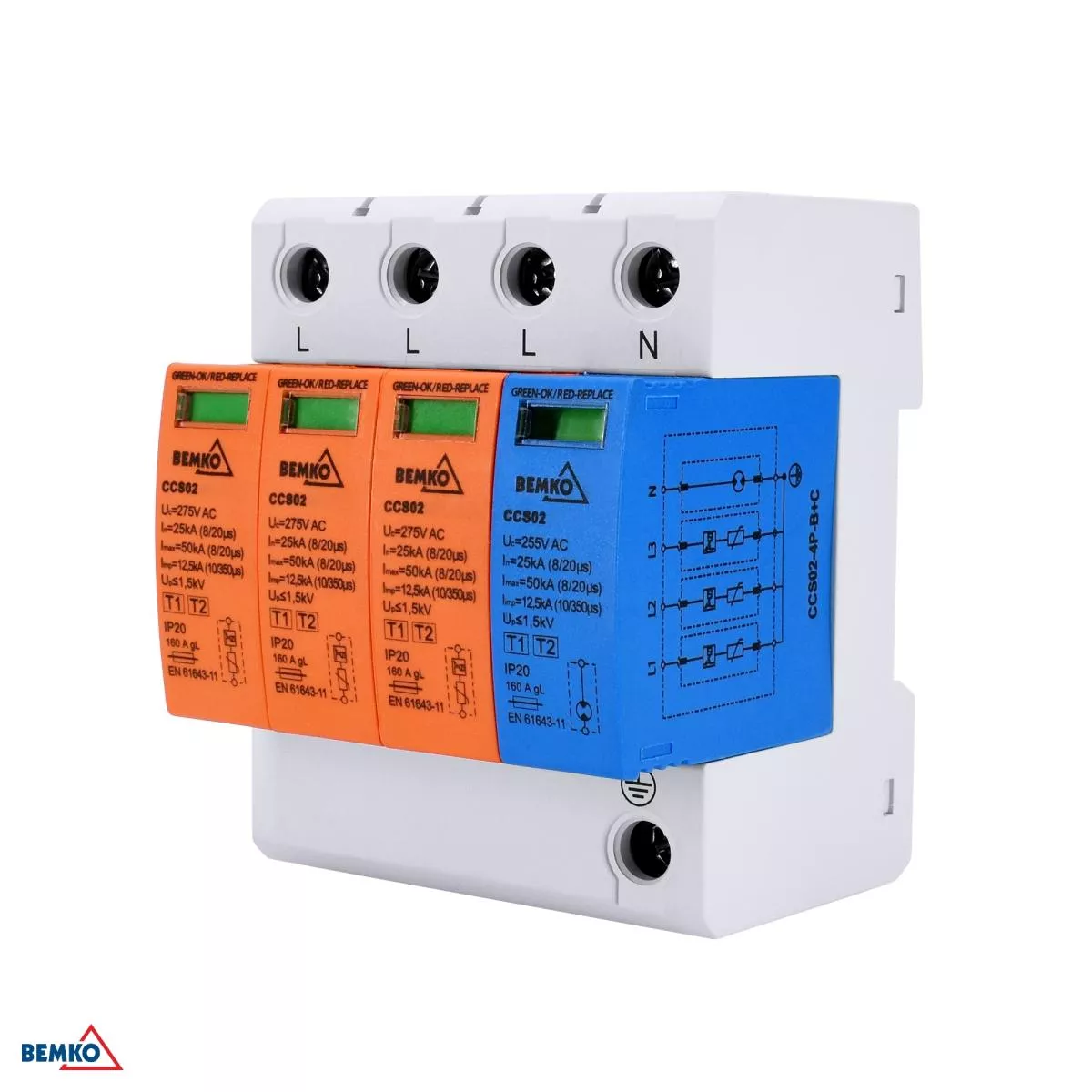

OGRANICZNIK PRZEPIĘĆ 4P 12,5kA(10/350) KLASA T1+T2 (B+C)
| Information | Value |
|---|---|
| Supplier | BEMKO Sp. z o.o. |
| Series | CCS |
| Symbol | A50-CCS02-4P-B+C |
| GTIN(EAN) | 5900280931917 |
| Price unit | piece |
| Catalog price | 393,60 zł (320,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | yes |
| System configuration TN: | no |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | no |
| Number of poles: | 4 |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Max. continuous voltage AC: | 275 V |
| Nominal voltage AC: | 230 V |
| Voltage protection level: | 1.5 kV |
| Voltage protection level L-N: | 1.5 kV |
| Voltage protection level N-PE: | 1.5 kV |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 4 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 35 mm² |
| Remote signalling: | no |
| Signalling at the device: | Optical |
| Test class: | Type 1 + 2 |
| Integrated backup fuse: | yes |
| Energy-coordinated protection effect with regard to the terminal equipment: | yes |
| Degree of protection (IP): | IP20 |
