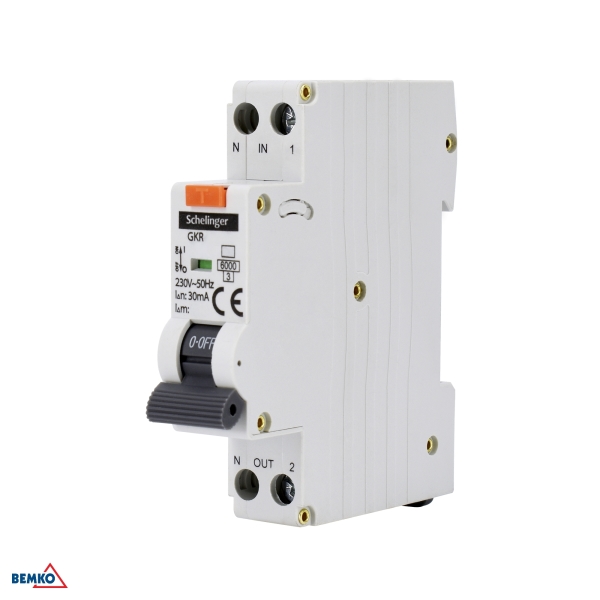

WYŁĄCZNIK RCBO 1P B 6A 30mA TYP AC SCHELINGER
| Information | Value |
|---|---|
| Supplier | BEMKO Sp. z o.o. |
| Series | GKR-AC |
| Symbol | A08-GKR-AC-B06 |
| GTIN(EAN) | 5900280961853 |
| Price unit | piece |
| Catalog price | 121,77 zł (99,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 92 g |
| Gross weight: | 100 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Rated voltage: | 230 V |
| Rated current: | 6 A |
| Rated fault current: | 0.03 A |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Short-circuit breaking capacity (Icw): | 6 kA |
| Voltage type: | AC |
| Frequency: | 50 Hz |
| Degree of protection (IP): | IP20 |
| Width in number of modular spacings: | 1 |
| Built-in depth: | 67 mm |
| Ambient temperature during operating: | -25 - 40 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section solid-core: | 1 - 6 mm² |
