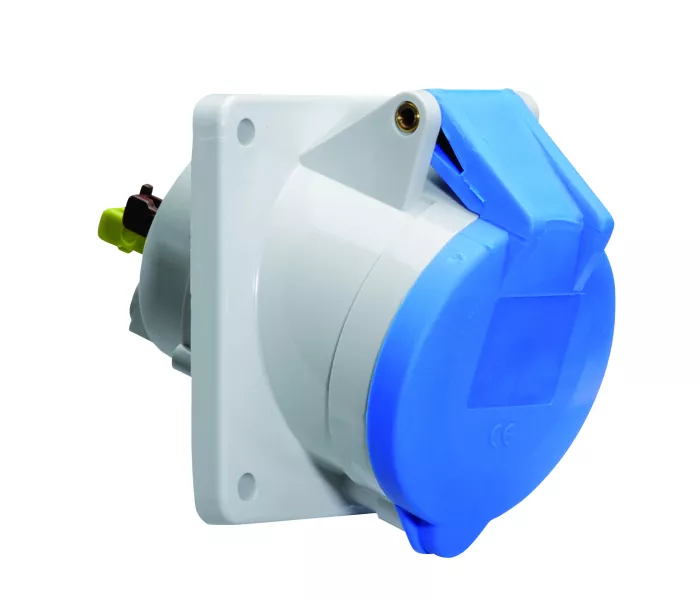

Gniazdo tablicowe skośne Quick-Connect 16A 3p 230V IP44
| Information | Value |
|---|---|
| Supplier | BALS POLSKA Elektrotechnika Sp. z o.o. |
| Symbol | 12749 |
| GTIN(EAN) | 4024941127493 |
| Price unit | piece |
| Catalog price | 35,15 zł (28,58 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo w technologii bezśrubowej Quick-Connect, nachylenie 20stop., kołnierz 85x85mm
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| Number of poles: | 3 |
| IEC-amperage: | 16 A |
| Clock hour position: | 6 h |
| Drill hole distance vertical: | 70 mm |
| Drill hole distance horizontal: | 70 mm |
| Flange size vertical: | 85 mm |
| Flange size horizontal: | 85 mm |
| Material: | Plastic |
| Connection system: | Screw less terminal |
| Insert direction: | Angled |
| Degree of protection (IP): | IP44 |
| Military model: | yes |
| Identification colour: | Blue |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
