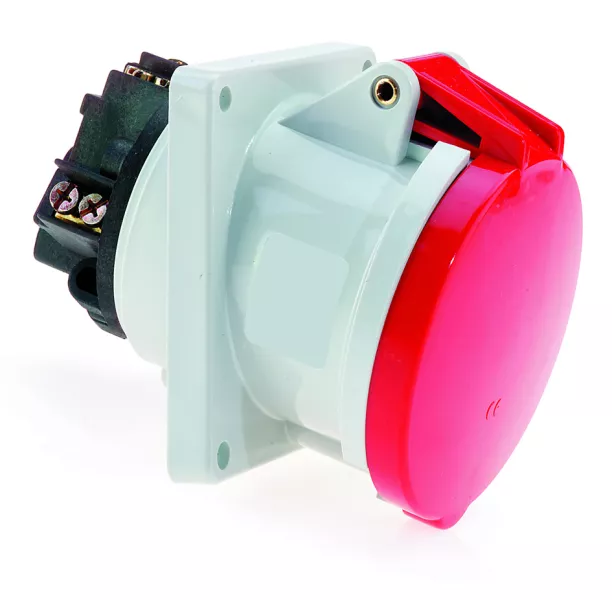

Gniazdo tablicowe skośne 63A 4p 400V IP44
| Information | Value |
|---|---|
| Supplier | BALS POLSKA Elektrotechnika Sp. z o.o. |
| Symbol | 12074 |
| GTIN(EAN) | 4024941120746 |
| Price unit | piece |
| Catalog price | 175,12 zł (142,37 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Gniazdo w technologii Kontex-Plus, kołnierz 100x92mm, nachylenie 15stop., śrubowe zaciski ramowe, pilot - dodać literę "P" na końcu numeru
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| Number of poles: | 4 |
| IEC-amperage: | 63 A |
| Clock hour position: | 6 h |
| Drill hole distance vertical: | 85 mm |
| Drill hole distance horizontal: | 77 mm |
| Flange size vertical: | 100 mm |
| Flange size horizontal: | 92 mm |
| Material: | Plastic |
| Connection system: | Screwed terminal |
| Insert direction: | Angled |
| Degree of protection (IP): | IP44 |
| Military model: | yes |
| Identification colour: | Red |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
