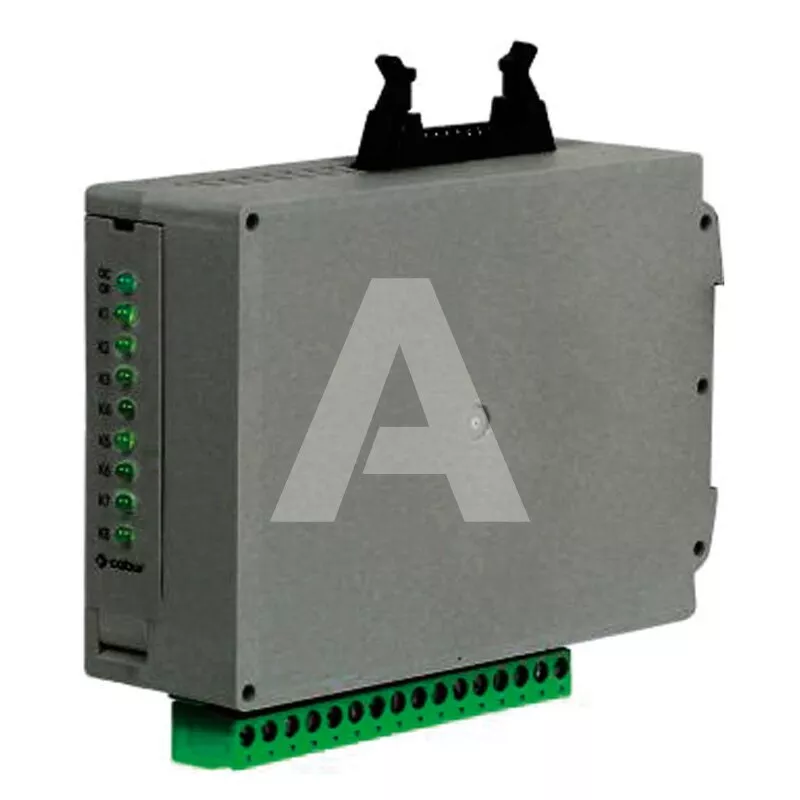

CR8-3 Moduł przekaźnikowy 24 Vdc
| Information | Value |
|---|---|
| Supplier | ASTAT LOGISTYKA Sp. z o.o. |
| Symbol | I-XCR830000000000 |
| Price unit | piece |
| Catalog price | 487,52 zł (396,36 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
| Parametr | Wartość |
|---|---|
| Konfiguracja styków | SPDT |
| Wysokość [mm] | 108 |
| Szerokość [mm] | 119 |
| Głębokość [mm] | 22,5 |
| Stopień ochrony (IP) | IP20 |
| Liczba styków zwiernych | 8 |
| Liczba styków rozwiernych | 8 |
| Prąd znamionowy [A] | 8 |
| Rodzaj połączenia elektrycznego | Połączenie śrubowe |
| Znamionowe napięcie sterowania Us dla DC [V] | 24..24 |
| Znamionowe napięcie sterowania Us dla AC 50 Hz [V] | 24..24 |
| Znamionowe napięcie sterowania Us dla AC 60 Hz [V] | 24..24 |
| Liczba styków przełącznych | 8 |
| Wskaźnik LED | Tak |
| Z wymuszonym prowadzeniem styku | Nie |
| Z odłączalnymi zaciskami | Tak |
| Kompletny z gniazdem | Tak |
| Oznaczenie CE | Tak |
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Switching relay |
| Nominal current: | 8 A |
| Number of contacts as normally closed contact: | 8 |
| Number of contacts as normally open contact: | 8 |
| Number of contacts as change-over contact: | 8 |
| Width: | 119 mm |
| Height: | 108 mm |
| Depth: | 22.5 mm |
| With detachable clamps: | yes |
| With forced-guided contacts: | no |
| Complete with socket: | yes |
| With LED indication: | yes |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Degree of protection (IP): | IP20 |
| Type of switch contact: | Single contact |
| Drive, switching attitude: | Mono stable |
| Drive, polarization: | Polarity free |
| Voltage type for actuating: | AC/DC |
| Type of electric connection: | Screw connection |
