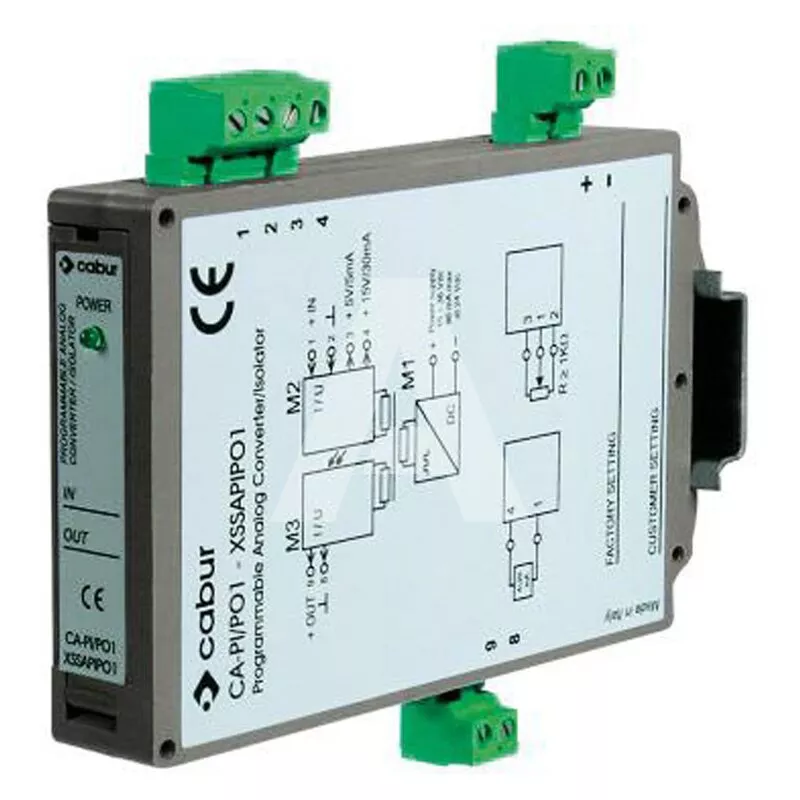

CAPIPO3 Programowalny konwerter analogowy
| Information | Value |
|---|---|
| Supplier | ASTAT LOGISTYKA Sp. z o.o. |
| Symbol | I-XCAPIPO30000000 |
| GTIN(EAN) | 8017963060103 |
| Price unit | piece |
| Catalog price | 1 973,76 zł (1 604,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
| Parametr | Wartość |
|---|---|
| Liczba wejść | 25 |
| Liczba wyjść | 15 |
| Sposób montażu | Zatrzaskowe na szynie montażowej |
| Liczba kanałów | 1 |
| Wysokość [mm] | 108 |
| Szerokość [mm] | 22,5 |
| Głębokość [mm] | 120 |
| Rodzaj źródła zasilania | Aktywny |
| Stopień ochrony (IP) | IP20 |
| Zakres temperatury pracy [°C] | -10..65 |
| Rodzaj połączenia elektrycznego | Połączenie śrubowe |
| Pobór mocy [W] | 2,4 |
| Znamionowe napięcie zasilające dla DC [V] | 15..36 |
| Separacja galwaniczna pomiędzy wejściami | Tak |
| Separacja galwaniczna pomiędzy wejściem a wyjściem | Tak |
| Separacja galwaniczna pomiędzy wyjściami | Tak |
| Separacja galwaniczna pomiędzy napięciem zasilającym a wszystkimi obwodami prądowymi | Tak |
| Oznaczenie CE | Tak |
Additional features:
| Information | Value |
|---|---|
| Net weight: | 122 g |
| ETIM class: | Isolation amplifier |
| Number of input ranges -1 V ... +1 V: | 1 |
| Number of input ranges -60 mV ... +60 mV: | 1 |
| Number of input ranges -100 mV ... +100 mV: | 1 |
| Number of input ranges -300 mV ... +300 mV: | 0 |
| Number of input ranges -500 mV ... +500 mV: | 1 |
| Number of input ranges -2 V ... +2 V: | 0 |
| Number of input ranges -2.5 V ... +2.5 V: | 0 |
| Number of input ranges -5 V ... +5 V: | 1 |
| Number of input ranges -10 V ... +10 V: | 1 |
| Number of input ranges -20 V ... +20 V: | 0 |
| Number of input ranges 0 mV ... 60 mV: | 1 |
| Number of input ranges 0 mV ... 100 mV: | 1 |
| Number of input ranges 0 mV ... 200 mV: | 0 |
| Number of input ranges 0 mV ... 300 mV: | 0 |
| Number of input ranges 0 mV ... 500 mV: | 1 |
| Number of input ranges 0 V ... 1 V: | 1 |
| Number of input ranges 0 V ... 2 V: | 0 |
| Number of input ranges 0 V ... 2.5 V: | 0 |
| Number of input ranges 0 V ... 5 V: | 1 |
| Number of input ranges 0 V ... 10 V: | 1 |
| Number of input ranges 0 V ... 20 V: | 0 |
| Number of input ranges 0 V ... 24 V: | 0 |
| Number of input ranges 0 V ... 30 V: | 0 |
| Number of input ranges 1 V ... 5 V: | 0 |
| Number of input ranges 2 V ... 10 V: | 0 |
| Number of input ranges +5 V ... -5 V: | 1 |
| Number of input ranges +10 V ... -10 V: | 1 |
| Number of input ranges 5 V ... 0 V: | 1 |
| Number of input ranges 5 V ... 1 V: | 0 |
| Number of input ranges 10 V ... 0 V: | 1 |
| Number of input ranges 10 V ... 2 V: | 0 |
| Number of input ranges 0 mA ... 5 mA: | 1 |
| Number of input ranges 0 mA ... 10 mA: | 1 |
| Number of input ranges 0 mA ... 20 mA: | 1 |
| Number of input ranges 4 mA ... 20 mA: | 1 |
| Number of input ranges -5 mA ... +5 mA: | 1 |
| Number of input ranges -10 mA ... +10 mA: | 1 |
| Number of input ranges -20 mA ... +20 mA: | 1 |
| Number of input ranges 20 mA ... 0 mA: | 1 |
| Number of input ranges 20 mA ... 4 mA: | 1 |
| Number of output ranges -60 mV ... +60 mV: | 0 |
| Number of output ranges -100 mV ... +100 mV: | 0 |
| Number of output ranges -300 mV ... +300 mV: | 0 |
| Number of output ranges -500 mV ... +500 mV: | 0 |
| Number of output ranges -1 V ... +1 V: | 0 |
| Number of output ranges -2 V ... +2 V: | 0 |
| Number of output ranges -2.5 V ... +2.5 V: | 0 |
| Number of output ranges -5 V ... +5 V: | 1 |
| Number of output ranges -10 V ... +10 V: | 1 |
| Number of output ranges -20 V ... +20 V: | 0 |
| Number of output ranges 0 mV ... 60 mV: | 0 |
| Number of output ranges 0 mV ... 100 mV: | 0 |
| Number of output ranges 0 mV ... 200 mV: | 0 |
| Number of output ranges 0 mV ... 300 mV: | 0 |
| Number of output ranges 0 mV ... 500 mV: | 0 |
| Number of output ranges 0 V ... 1 V: | 0 |
| Number of output ranges 0 V ... 2 V: | 0 |
| Number of output ranges 0 V ... 2.5 V: | 0 |
| Number of output ranges 0 V ... 5 V: | 1 |
| Number of output ranges 0 V ... 10 V: | 1 |
| Number of output ranges 0 V ... 20 V: | 0 |
| Number of output ranges 0 V ... 24 V: | 0 |
| Number of output ranges 0 V ... 30 V: | 0 |
| Number of output ranges 1 V ... 5 V: | 1 |
| Number of output ranges 2 V ... 10 V: | 0 |
| Number of output ranges +5 V ... -5 V: | 1 |
| Number of output ranges +10 V ... -10 V: | 1 |
| Number of output ranges 5 V ... 0 V: | 1 |
| Number of output ranges 5 V ... 1 V: | 0 |
| Number of output ranges 10 V ... 0 V: | 1 |
| Number of output ranges 10 V ... 2 V: | 0 |
| Number of output ranges 0 mA ... 5 mA: | 0 |
| Number of output ranges 0 mA ... 10 mA: | 1 |
| Number of output ranges 0 mA ... 20 mA: | 1 |
| Number of output ranges 4 mA ... 20 mA: | 1 |
| Number of output ranges -5 mA ... +5 mA: | 0 |
| Number of output ranges -10 mA ... +10 mA: | 0 |
| Number of output ranges -20 mA ... +20 mA: | 1 |
| Number of output ranges 20 mA ... 0 mA: | 1 |
| Number of output ranges 20 mA ... 4 mA: | 1 |
| Switching frequency: | 1000 Hz |
| Number of channels: | 1 |
| Height: | 108 mm |
| Width: | 22.5 mm |
| Depth: | 120 mm |
| Power consumption: | 2.4 W |
| Malfunction message output: | no |
| Inherently safe according to EN 60947-5-6 NAMUR: | no |
| Galvanic separation between inputs: | yes |
| Galvanic separation between input and output: | yes |
| Galvanic separation between output to output: | yes |
| Galvanic separation between supply voltage and all other current circuits: | yes |
| Rated supply voltage DC: | 15 - 36 V |
| Operating temperature: | -10 - 65 °C |
| Degree of protection (IP): | IP20 |
| Mounting method: | Snap mounting support rail |
| Type of electric connection: | Screw connection |
| Construction type of device: | Other |
| SIL according to IEC 61508: | None |
| Type of power supply: | Active |
