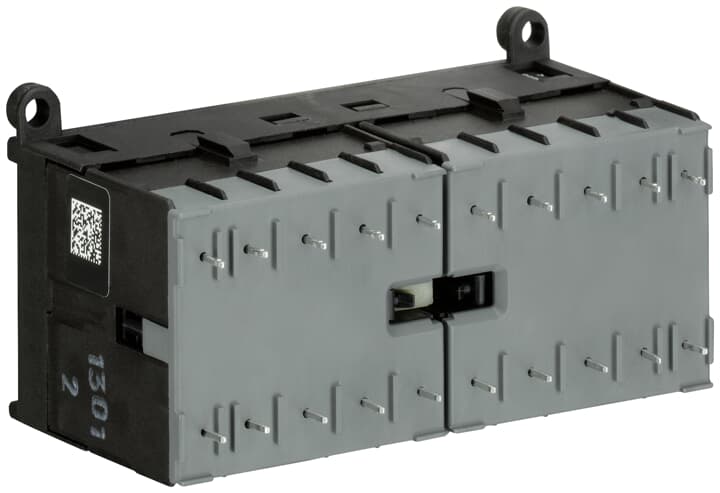

Układ rewersyjny styczników VB7-30-10-P-400AC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | GJL1311909R8105 |
| GTIN(EAN) | 4013614191442 |
| Price unit | piece |
| Catalog price | 371,04 zł (301,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 345 g |
| ETIM class: | Combination of contactors |
| Function: | Reversing contactor |
| Rated control supply voltage AC 50 Hz: | 380 - 415 V |
| Voltage type for actuating: | AC |
| Rated operation current Ie at AC-3, 400 V: | 12 A |
| Rated operation power at AC-3, 400 V: | 5.5 kW |
| Rated operation power NEMA: | 2.2371 kW |
| Number of normally open contacts as main contact: | 3 |
| Type of electrical connection of main circuit: | PCB connection |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
| Rail mounting possible: | yes |
| Rated control supply voltage AC 60 Hz: | 380 - 380 V |
| Rated operation current Ie at AC-1, 400 V: | 6 A |
| Type of electrical connection for auxiliary- and control current circuit: | Other |
| Number of normally closed contacts as main contact: | 0 |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Width: | 96.2 mm |
| Height: | 57.5 mm |
| Depth: | 47.7 mm |
