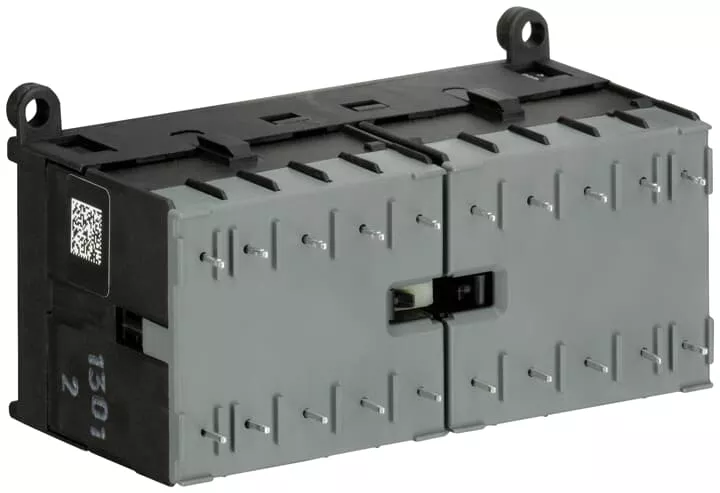

Układ rewersyjny styczników VBC6A-30-10-P-24DC
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | GJL1213919R0101 |
| GTIN(EAN) | 4013614053894 |
| Price unit | piece |
| Catalog price | 399,34 zł (324,67 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 345 g |
| ETIM class: | Combination of contactors |
| Function: | Reversing contactor |
| Voltage type for actuating: | DC |
| Rated operation current Ie at AC-1, 400 V: | 6 A |
| Rated operation current Ie at AC-3, 400 V: | 9 A |
| Rated operation power at AC-3, 400 V: | 4 kW |
| Rated operation power NEMA: | 1.4914 kW |
| Number of normally open contacts as main contact: | 3 |
| Type of electrical connection for auxiliary- and control current circuit: | Other |
| Type of electrical connection of main circuit: | PCB connection |
| Degree of protection (IP): | IP20 |
| Degree of protection (NEMA): | 1 |
| Rail mounting possible: | yes |
| Rated control supply voltage DC: | 24 - 24 V |
| Number of normally closed contacts as main contact: | 0 |
| Voltage type (operating voltage): | DC |
| Operating voltage AC 50 Hz: | 690 - 690 V |
| Operating voltage AC 60 Hz: | 690 - 690 V |
| Operating voltage DC: | 2.5 - 2.5 V |
| Number of auxiliary contacts as normally closed contact: | 0 |
| Number of auxiliary contacts as normally open contact: | 1 |
| Width: | 96.2 mm |
| Height: | 57.5 mm |
| Depth: | 47.7 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-28 16:07:01 |
| Files to download: | |
| External links: |
