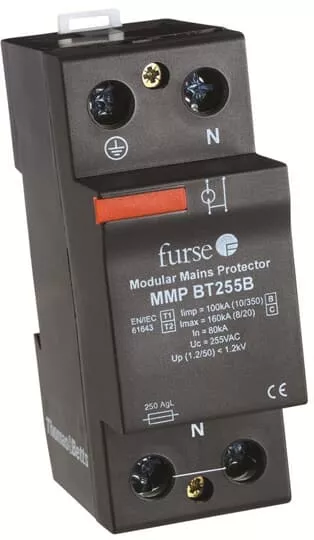

Moduł MMP BT255B/1/S
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 7TCA085460R0301 |
GTIN(EAN) | 5415022168334 |
Price unit | piece |
Catalog price | 2 942,18 zł (2 392,02 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 265 g |
ETIM class: | Surge protection device for power supply systems |
Mounting method: | Other |
Construction size: | Other |
Signalling at the device: | None |
Degree of protection (IP): | IP20 |
With remote signalling contact: | no |
Number of conductors (without earthing): | 1 |
Voltage protection level: | 1.5 kV |
Max. continuous voltage AC: | 280 V |
Nominal discharge surge current (8/20): | 25 kA |
Nominal voltage AC: | 255 V |
Category type 2: | yes |
Voltage protection level L-N: | 1.5 kV |
Voltage protection level N-PE: | 1.5 kV |
Integrated backup fuse: | yes |
Max. conductor cross section solid (solid, stranded): | 16 mm² |
Max. conductor cross section flexible (fine-strand): | 16 mm² |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | no |
System configuration TN-S: | no |
System configuration TT: | yes |
System configuration other: | yes |
System configuration TN-C-S: | no |
Max. discharge surge current (8/20): | 100 kA |
Short-circuit breaking capacity (Isccr): | 25 kA |
