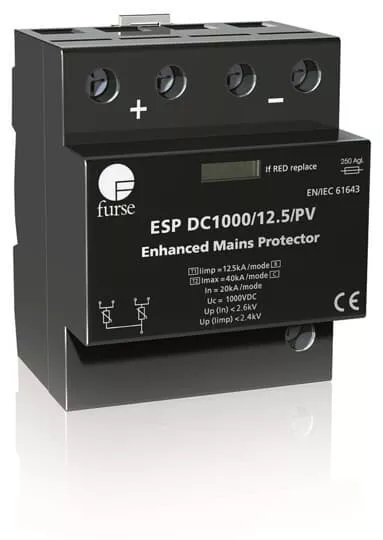

Moduł ESPDC1000125PV
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 7TCA085460R0146 |
| GTIN(EAN) | 5415022011241 |
| Price unit | piece |
| Catalog price | 6 913,69 zł (5 620,89 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 614 g |
| ETIM class: | Surge protection device for power supply systems |
| Mounting method: | Other |
| Construction size: | 1 modular spacing |
| Signalling at the device: | Optical |
| Degree of protection (IP): | IP20 |
| With remote signalling contact: | no |
| Number of conductors (without earthing): | 2 |
| Voltage protection level: | 0.75 kV |
| Nominal discharge surge current (8/20): | 12.5 kA |
| Nominal voltage DC: | 125 V |
| Category type 2: | yes |
| Voltage protection level L-N: | 0.75 kV |
| Max. continuous voltage DC: | 125 V |
| Max. PV-voltage: | 125 V |
| Integrated backup fuse: | no |
| Max. conductor cross section solid (solid, stranded): | 16 mm² |
| Max. conductor cross section flexible (fine-strand): | 16 mm² |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| System configuration TN-C-S: | no |
| Max. discharge surge current (8/20): | 40 kA |
| Short-circuit breaking capacity (Isccr): | 25 kA |
