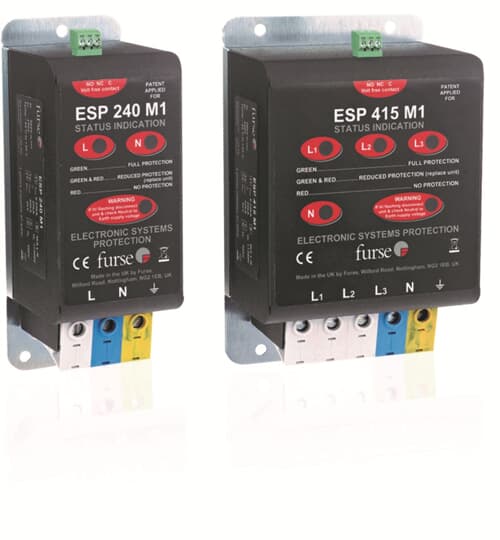

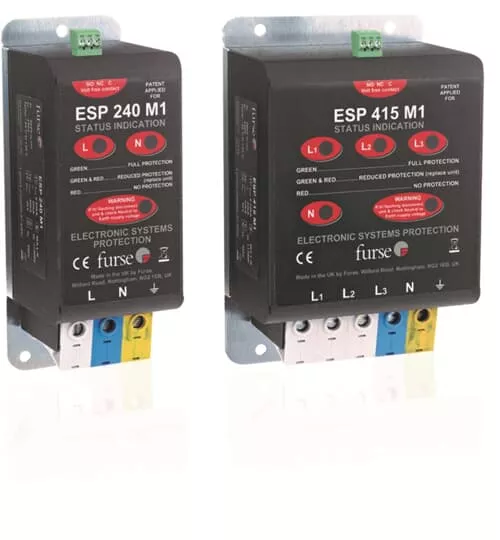

Moduł ESP415M1
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 7TCA085460R0112 |
GTIN(EAN) | 5414363086352 |
Price unit | piece |
Catalog price | 5 813,32 zł (4 726,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 1000 g |
ETIM class: | Surge protection device for power supply systems |
Mounting method: | Other |
Construction size: | Other |
Signalling at the device: | Optical |
Degree of protection (IP): | IP20 |
With remote signalling contact: | no |
Number of conductors (without earthing): | 4 |
Voltage protection level: | 0.9 kV |
Max. continuous voltage AC: | 280 V |
Nominal discharge surge current (8/20): | 20 kA |
Nominal voltage AC: | 240 V |
Category type 2: | yes |
Voltage protection level L-N: | 0.9 kV |
Voltage protection level N-PE: | 0.9 kV |
Integrated backup fuse: | yes |
Max. conductor cross section solid (solid, stranded): | 16 mm² |
Max. conductor cross section flexible (fine-strand): | 16 mm² |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-S: | yes |
System configuration TT: | no |
System configuration other: | no |
System configuration TN-C-S: | yes |
Max. discharge surge current (8/20): | 40 kA |
Short-circuit breaking capacity (Isccr): | 25 kA |
