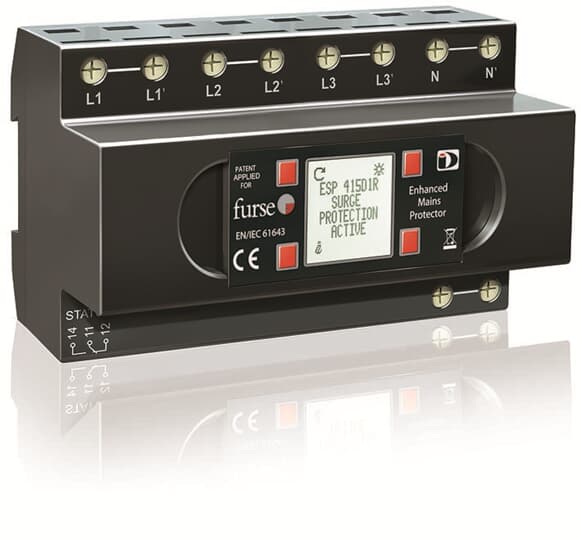

Moduł ESP415D1RLCDDEM
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 7TCA085440R0017 |
| GTIN(EAN) | 5414363609414 |
| Price unit | piece |
| Catalog price | 8 101,84 zł (6 586,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1000 g |
| ETIM class: | Surge protection device for power supply systems |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Construction size: | 8 modular spacing |
| Signalling at the device: | Optical |
| Degree of protection (IP): | IP20 |
| With remote signalling contact: | yes |
| Voltage protection level: | 0.9 kV |
| Max. continuous voltage AC: | 280 V |
| Nominal discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 240 V |
| Category type 2: | yes |
| Voltage protection level L-N: | 0.9 kV |
| Voltage protection level N-PE: | 0.9 kV |
| Integrated backup fuse: | yes |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 16 mm² |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| System configuration TN-C-S: | no |
| Number of conductors (without earthing): | 0 |
| Max. discharge surge current (8/20): | 0 kA |
| Short-circuit breaking capacity (Isccr): | 0 kA |
