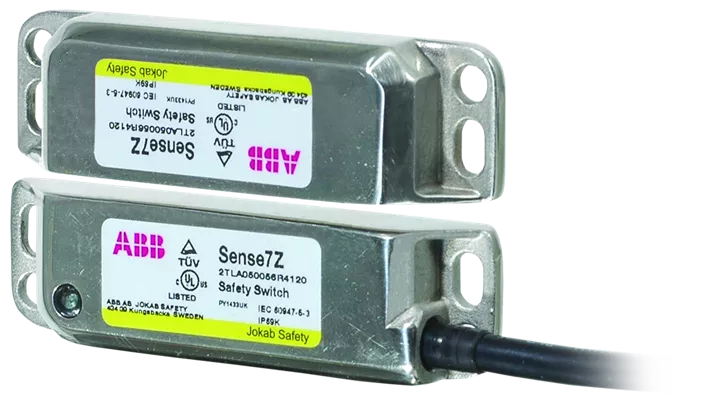

Sense 7Z, SS QC przewód
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2TLA050056R2120 |
| GTIN(EAN) | 7350024466751 |
| Price unit | piece |
| Catalog price | 2 312,78 zł (1 880,31 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 205 g |
| ETIM class: | Magnetic proximity switch |
| Number of protected semiconductor outputs: | 3 |
| Type of actuation: | Magnet |
| Type of interface for safety communication: | Other |
| Type of electric connection: | Connector M12 |
| Type of switching output: | PNP |
| Width sensor: | 88 mm |
| Height of sensor: | 50 mm |
| Length of sensor: | 14 mm |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Construction type housing: | Special construction |
| Housing material: | Stainless steel |
| Coating housing: | Uncoated |
| Protected switch distance OFF: | 20 mm |
| Protected switch distance ON: | 8 mm |
| SIL according to IEC 61508: | 3 |
| Performance level according to EN ISO 13849-1: | Level e |
| Max. output current at protected output: | 0.2 mA |
| Ambient temperature: | -25 - 70 °C |
| Mechanical mounting condition for sensor: | Not flat |
| Min. output current: | 10 mA |
| Voltage type: | DC |
| Cross-/short circuit identification possible: | yes |
| Switching distance: | 5 mm |
| With monitoring function downstream switching devices: | no |
| Suitable for safety functions: | yes |
| With status indication: | yes |
| Degree of protection (IP): | IP67 |
| Rated supply voltage DC: | 24 - 24 V |
