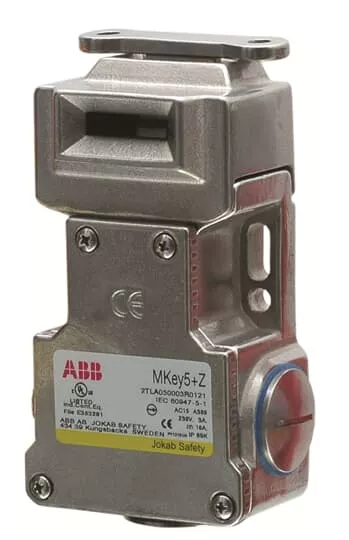

MKey5+Z, M20 2NC/1NO wyłącznik z kluczem
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2TLA050003R0121 |
GTIN(EAN) | 7350024466348 |
Price unit | piece |
Catalog price | 2 608,07 zł (2 120,38 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 453 g |
ETIM class: | Position switch with separate actuator |
With status indication: | no |
Suitable for safety functions: | yes |
Width sensor: | 58 mm |
Height of sensor: | 103.5 mm |
Length of sensor: | 37.5 mm |
Forced opening: | yes |
Number of contacts as normally closed contact: | 2 |
Number of contacts as normally open contact: | 1 |
Type of switching contact: | Slow-action switch |
Rated operation current Ie at AC-15, 230 V: | 3 A |
Rated operation current Ie at DC-13, 24 V: | 0.2 A |
Construction type housing: | Special construction |
Housing material: | Metal |
Coating housing: | Other |
Type of interface: | Other |
Type of interface for safety communication: | Other |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -25 - 80 °C |
Degree of protection (IP): | IP67 |
Rated operation current Ie at AC-15, 24 V: | 3 A |
Rated operation current Ie at AC-15, 125 V: | 3 A |
Rated operation current Ie at DC-13, 125 V: | 0.2 A |
Rated operation current Ie at DC-13, 230 V: | 0.2 A |
Degree of protection (NEMA): | 1 |
Number of safety auxiliary contacts: | 0 |
Number of contacts as change-over contact: | 0 |
