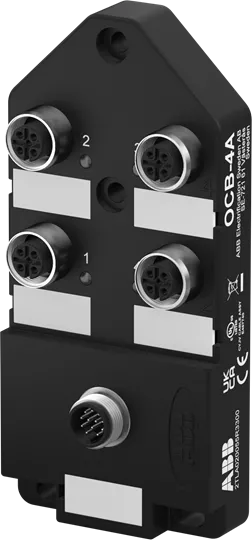

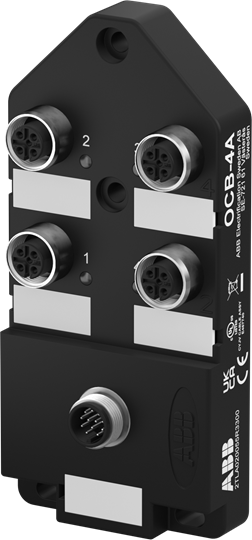

OCB skrzynka łączeniowa
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2TLA020055R3300 |
GTIN(EAN) | 7350024486551 |
Price unit | piece |
Catalog price | 2 238,48 zł (1 819,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 160 g |
ETIM class: | Passive sensor-actuator interface (without cable) |
Type of connector for trunk line: | M12 |
Number of sensor-/actuator-slots: | 4 |
Number of channels per connector slot: | 1 |
Type of branches for sensor-/actuator cables: | M12 |
Number of poles sensor/actuator slots: | 5 |
Rated voltage: | 24 V |
Pollution degree: | 2 |
Operating voltage: | 24 - 24 V |
Max. current carrying capacity per I/O signal: | 2 A |
Max. current carrying capacity per socket: | 2 A |
Max. total current: | 2 A |
Material contact body: | Copper |
Material of contact surface: | Gold |
Material insulation body: | PBT |
Thread sleeves sensor/actuator slots: | M12 |
With LED indication: | no |
With potential separation: | no |
Connection for NPN-sensors: | no |
Fix cable version suitable for cable guide chain: | no |
Housing material: | Plastic |
Housing colour: | Black |
Operating temperature: | -25 - 80 °C |
Degree of protection (IP): | IP67 |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Width: | 54 mm |
Height: | 118 mm |
Length: | 28 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
