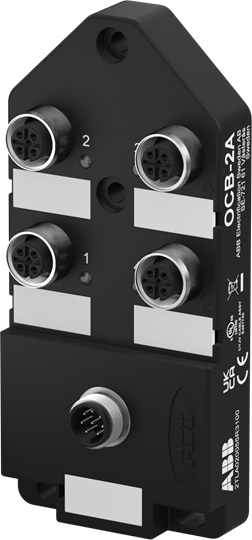

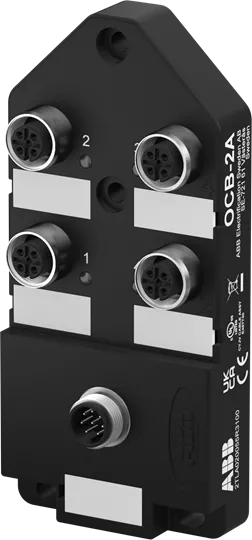

OCB skrzynka łączeniowa
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2TLA020055R3100 |
| GTIN(EAN) | 7350024486537 |
| Price unit | piece |
| Catalog price | 2 145,27 zł (1 744,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 160 g |
| ETIM class: | Passive sensor-actuator interface (without cable) |
| Type of connector for trunk line: | M12 |
| Number of sensor-/actuator-slots: | 4 |
| Number of channels per connector slot: | 1 |
| Type of branches for sensor-/actuator cables: | M12 |
| Number of poles sensor/actuator slots: | 5 |
| Rated voltage: | 24 V |
| Pollution degree: | 2 |
| Operating voltage: | 24 - 24 V |
| Max. current carrying capacity per I/O signal: | 2 A |
| Max. current carrying capacity per socket: | 2 A |
| Max. total current: | 2 A |
| Material contact body: | Copper |
| Material of contact surface: | Gold |
| Material insulation body: | PBT |
| Thread sleeves sensor/actuator slots: | M12 |
| With LED indication: | no |
| With potential separation: | no |
| Connection for NPN-sensors: | no |
| Fix cable version suitable for cable guide chain: | no |
| Housing material: | Plastic |
| Housing colour: | Black |
| Operating temperature: | -25 - 80 °C |
| Degree of protection (IP): | IP67 |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Width: | 54 mm |
| Height: | 118 mm |
| Length: | 28 mm |
