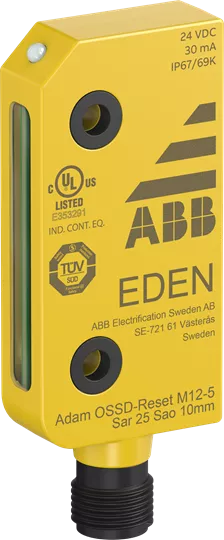

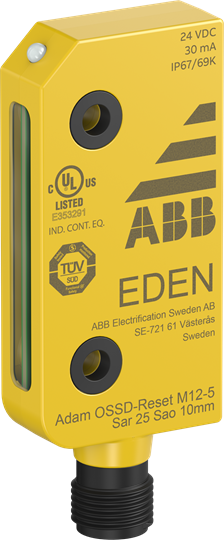

Adam OSSD-Reset M12-5 czujnik z wtyczką
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2TLA020051R5600 |
GTIN(EAN) | 7350024480351 |
Price unit | piece |
Catalog price | 784,10 zł (637,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 26 g |
ETIM class: | Magnetic proximity switch |
Type of actuation: | Transponder |
Type of interface for safety communication: | Other |
Type of electric connection: | Connector M12 |
Type of switching output: | PNP |
Width sensor: | 30 mm |
Height of sensor: | 75.2 mm |
Length of sensor: | 12 mm |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Construction type housing: | Special construction |
Housing material: | Plastic |
Coating housing: | Uncoated |
Protected switch distance OFF: | 25 mm |
Protected switch distance ON: | 10 mm |
SIL according to IEC 61508: | 3 |
Performance level according to EN ISO 13849-1: | Level e |
Max. output current at protected output: | 0.05 mA |
Ambient temperature: | -40 - 70 °C |
Mechanical mounting condition for sensor: | Not flat |
Voltage type: | DC |
Cross-/short circuit identification possible: | yes |
Switching distance: | 15 mm |
With monitoring function downstream switching devices: | yes |
Suitable for safety functions: | yes |
With status indication: | yes |
Degree of protection (IP): | IP67 |
Rated supply voltage DC: | 24 - 24 V |
Number of semiconductor outputs with signalling function: | 0 |
Number of contact energized outputs with signalling function: | 0 |
