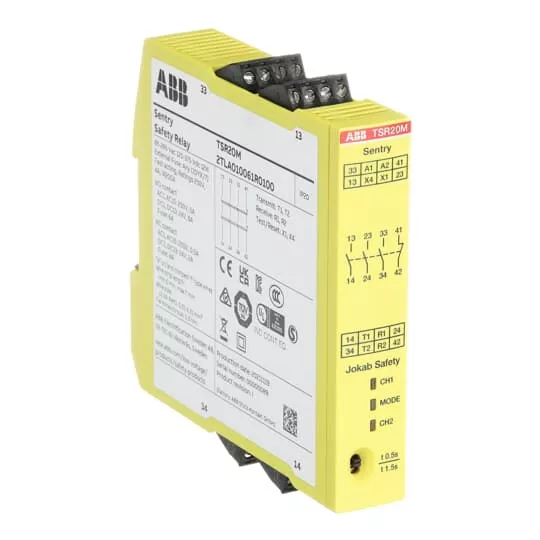

Sentry TSR20M VAC/VDC przekaźnik bezpieczeństwa
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2TLA010061R0100 |
| GTIN(EAN) | 7350024483369 |
| Price unit | piece |
| Catalog price | 1 382,22 zł (1 123,76 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 214 g |
| ETIM class: | Device for monitoring of safety-related circuits |
| Model: | Other |
| Suitable for monitoring of position switches: | no |
| Suitable for monitoring of emergency-stop circuits: | yes |
| Suitable for monitoring of valves: | no |
| Suitable for monitoring of optoelectronic protection equipment: | no |
| Suitable for monitoring of tactile sensors: | no |
| Suitable for monitoring of magnetic switches: | no |
| Suitable for monitoring of proximity switches: | no |
| Type of electric connection: | Screw connection |
| Rail mounting possible: | yes |
| With detachable clamps: | yes |
| Evaluation inputs: | 2-channel |
| With start input: | yes |
| With muting function: | no |
| With feedback circuit: | yes |
| Number of outputs, safety related, delayed, with contact: | 4 |
| Type of safety according to IEC 61496-1: | None |
| Stop category according to IEC 60204: | 1 |
| Performance level according to EN ISO 13849-1: | Level e |
| SIL according to IEC 61508: | 3 |
| With approval for BG BIA: | no |
| With approval according to UL: | yes |
| Width: | 22.5 mm |
| Height: | 120 mm |
| Depth: | 120 mm |
| Release-delay: | 20 - 20 s |
| Number of outputs, safety related, undelayed, with contact: | 0 |
| Number of outputs, safety related, undelayed, semiconductors: | 0 |
| Number of outputs, safety related, delayed, semiconductors: | 0 |
| Number of outputs, signalling function, undelayed, with contact: | 0 |
| Number of outputs, signalling function, delayed, with contact: | 0 |
| Number of outputs, signalling function, undelayed, semiconductors: | 0 |
| Number of outputs, signalling function, delayed, semiconductors: | 0 |
| Voltage type (supply voltage): | AC/DC |
| Supply voltage AC 50 Hz: | 85 - 265 V |
| Supply voltage AC 60 Hz: | 85 - 265 V |
| Power consumption: | 12 W |
| Type of control voltage 1: | DC |
| Control voltage 1: | 24 - 24 V |
| Type of control voltage 2: | DC |
| Control voltage 2: | 24 - 24 V |
| Voltage type (operating voltage): | AC/DC |
| Operating voltage AC 50 Hz: | 85 - 265 V |
| Operating voltage AC 60 Hz: | 85 - 265 V |
| Operating voltage DC: | 120 - 375 V |
| Rated switch current: | 5 A |
