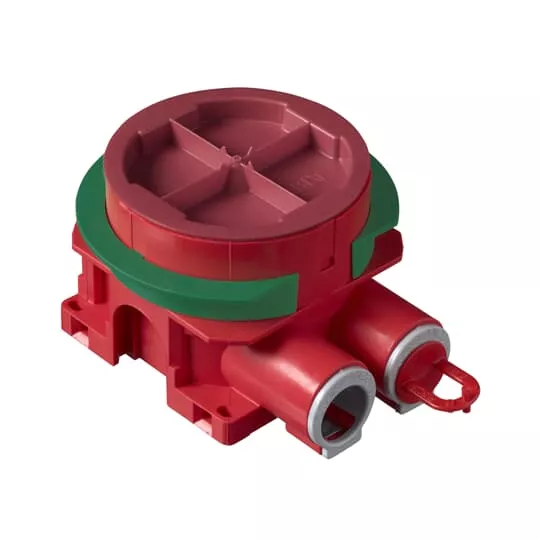

AU60.10FR
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2TKA00004281 |
| GTIN(EAN) | 6438199008172 |
| Price unit | piece |
| Catalog price | 54,33 zł (44,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 87,65 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Other |
| Shape: | Round |
| Construction type: | Device connection box (round/square) |
| Model: | Single |
| Provided with revolving ring: | yes |
| Couplable: | yes |
| Equipped with: | None |
| Diameter: | 71 mm |
| Length: | 71.000 mm |
| Width: | 71.000 mm |
| Inner depth: | 51 mm |
| For number of electric fittings: | 1 |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | yes |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | yes |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 16 mm |
| Pipe locking: | yes |
| Pipe locking optional: | no |
| Inlet from the rear: | no |
| Number of inlets: | 6 |
| Number of included spouts: | 2 |
| Material: | Plastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Colour: | Red |
| Degree of protection (IP): | IP3X |
| Cover model: | Construction protective cover |
| Transparent cover: | no |
| Cover attachment: | Snapped on |
| Sealable: | no |
| Circuit integrity: | E60 |
| With screening: | no |
| Air tight: | no |
| Clamp position fixed: | no |
| Luminaire hook mounting: | no |
| Special application: | Fire protection |
| Depth: | 71.000 - 71.000 mm |
