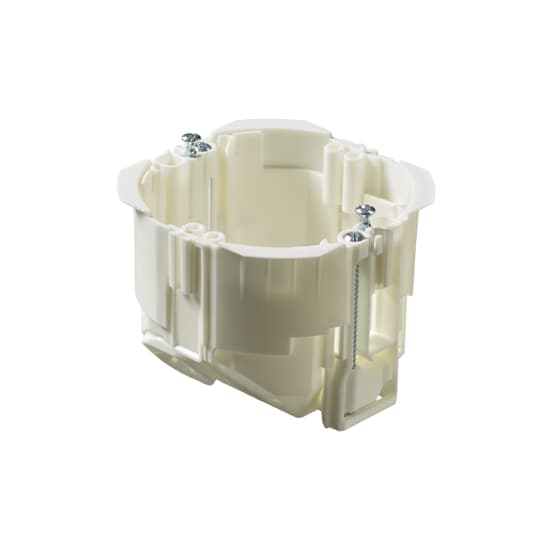

AUS74.2 Skrzynka montażowa
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2TKA00003482 |
| GTIN(EAN) | 6438199005041 |
| Price unit | piece |
| Catalog price | 19,94 zł (16,21 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 39 g |
| ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
| Mounting method: | Flush-mounted |
| Shape: | Round |
| Construction type: | Device connection box (round/square) |
| Model: | Single |
| Provided with revolving ring: | no |
| Couplable: | yes |
| Equipped with: | None |
| Diameter: | 74 mm |
| Width: | 73.000 mm |
| Inner depth: | 52 mm |
| For number of electric fittings: | 1 |
| Mounting switching equipment: | Screwing |
| With screws: | yes |
| Housing feed-through by break-out opening: | no |
| Housing feed-through by seal membrane: | no |
| Housing feed-through by nozzle: | no |
| Housing feed-through by step membrane: | no |
| For tube diameter: | 20 mm |
| Suitable for cable diameter: | 8 - 13 mm |
| Pipe locking: | yes |
| Pipe locking optional: | no |
| Inlet from the rear: | yes |
| Material: | Plastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Colour: | White |
| Degree of protection (IP): | IP3X |
| Transparent cover: | no |
| Sealable: | no |
| With screening: | no |
| Air tight: | no |
| Clamp position fixed: | no |
| Special application: | None |
| Length: | 73 mm |
| Depth: | 73 - 73 mm |
| Number of inlets: | 0 |
| Number of included spouts: | 0 |
| Number of poles of the clamp: | 0 |
