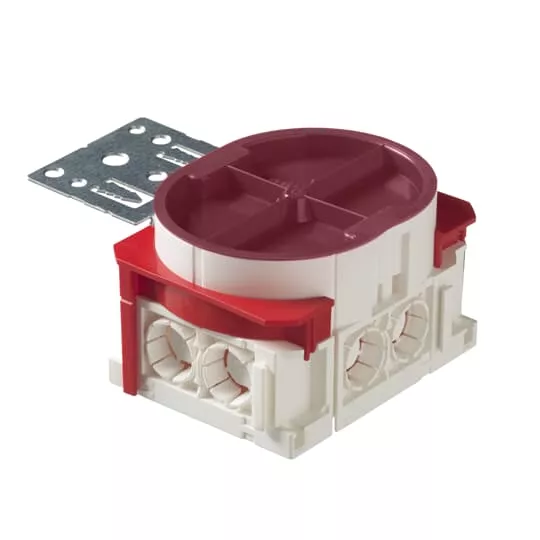

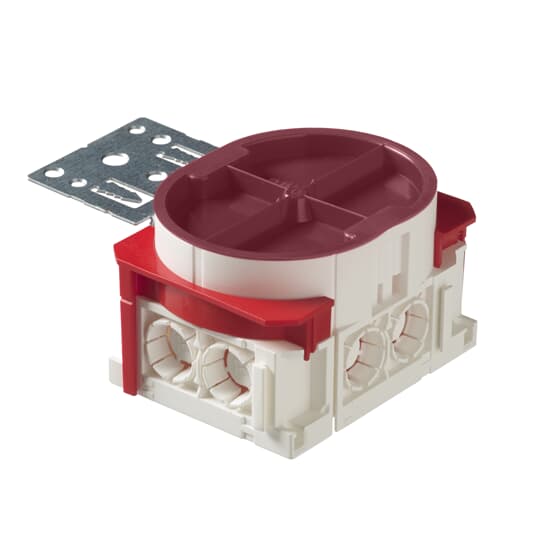

AU81.2 Skrzynka montażowa
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2TKA00003223 |
GTIN(EAN) | 6438199004846 |
Price unit | piece |
Catalog price | 26,37 zł (21,44 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 109,4 g |
ETIM class: | Box/housing for built-in mounting in the wall/ceiling |
Mounting method: | Flush-mounted |
Shape: | Rectangular |
Construction type: | Device connection box (round/square) |
Model: | One and a half |
Provided with revolving ring: | no |
Couplable: | yes |
Equipped with: | Mounting plate |
Length: | 96 mm |
Width: | 122 mm |
Inner depth: | 54 mm |
For number of electric fittings: | 1 |
Mounting switching equipment: | Screwing |
With screws: | yes |
Housing feed-through by break-out opening: | yes |
Housing feed-through by seal membrane: | no |
Housing feed-through by nozzle: | no |
Housing feed-through by step membrane: | no |
For tube diameter: | 16 mm |
Pipe locking: | yes |
Pipe locking optional: | no |
Inlet from the rear: | yes |
Number of inlets: | 8 |
Material: | Plastic |
Halogen free: | yes |
Surface protection: | Untreated |
Colour: | White |
Degree of protection (IP): | IP3X |
Transparent cover: | no |
Cover attachment: | Snapped on |
Sealable: | no |
With screening: | no |
Air tight: | no |
Clamp position fixed: | no |
Luminaire hook mounting: | no |
Special application: | None |
Depth: | 96 - 96 mm |
Number of included spouts: | 0 |
Number of poles of the clamp: | 0 |
With nail lugs: | yes |
