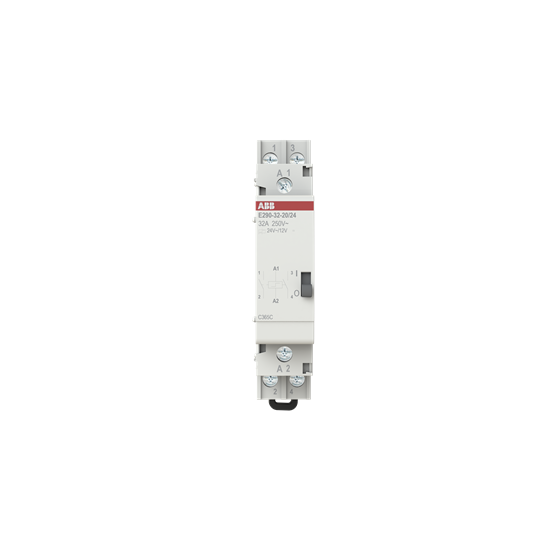

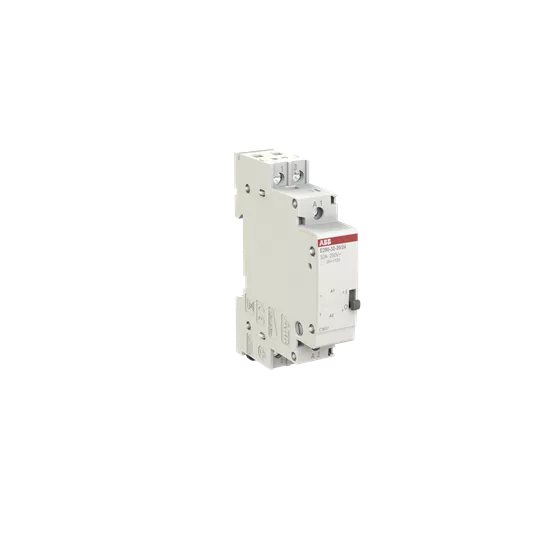

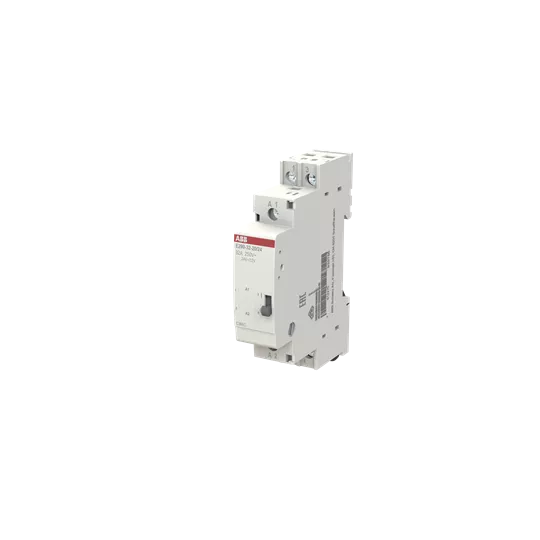

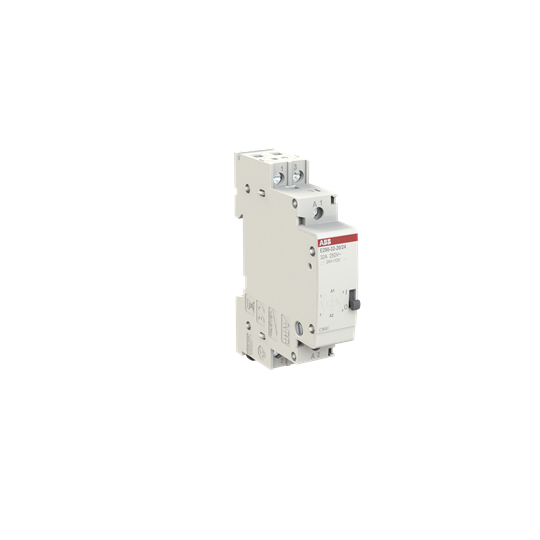

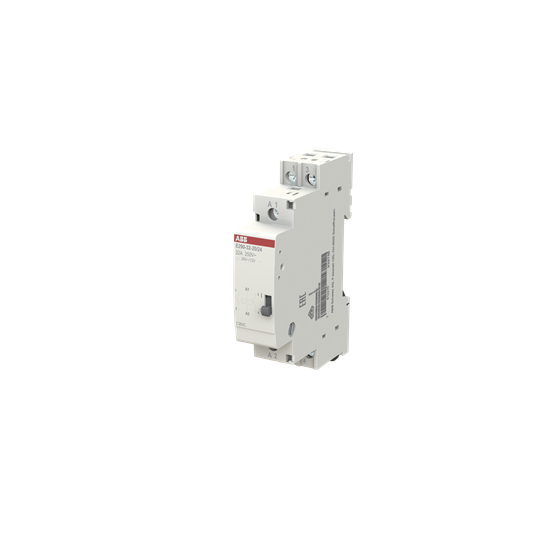

E290-32-20/24 Przekaźnik bistabilny 32A 2NO
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2TAZ322000R2042 |
GTIN(EAN) | 7612270939756 |
Price unit | piece |
Catalog price | 596,69 zł (485,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Latching relay |
Mounting method: | Other |
Width in number of modular spacings: | 1 |
Built-in depth: | 68 mm |
Number of contacts as normally open contact: | 2 |
Rated switch current: | 32 A |
Voltage type (supply voltage): | AC/DC |
Max. load fluorescent lamp (parallel compensated): | 4000 VA |
Max. switching current (cos phi = 0.6): | 32 A |
Suitable for manual operation: | yes |
Frequency control voltage 1: | 50 - 50 Hz |
Frequency control voltage 2: | 50 - 50 Hz |
Supply voltage: | 250 - 250 V |
Number of contacts as normally closed contact: | 0 |
Number of contacts as change-over contact: | 0 |
