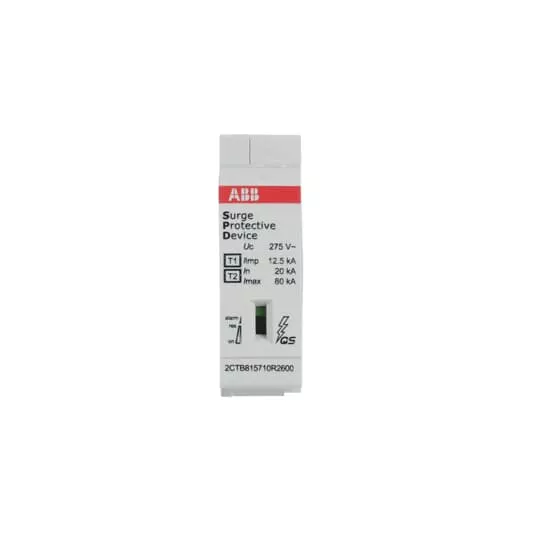

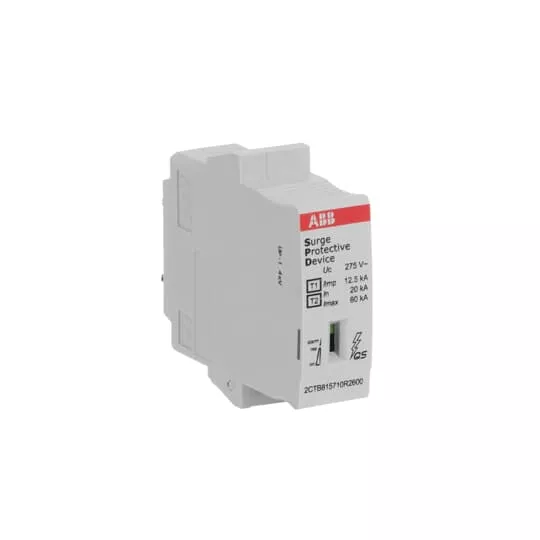

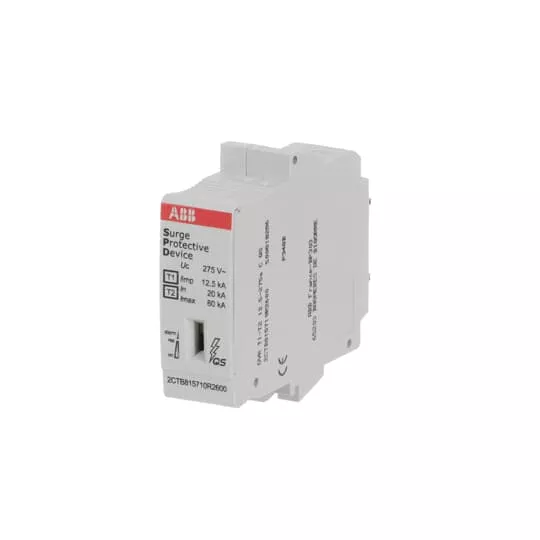

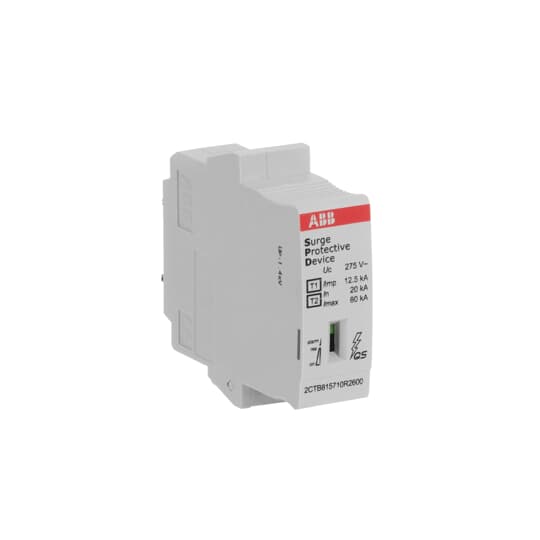

OVR T1-T2 12.5-275s C QS wkładka ogranicznika | T1-T2 | fazowa | 275V | Iimp= 12,5kA | In= 20kA |
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CTB815710R2600 |
GTIN(EAN) | 3660308525031 |
Price unit | piece |
Catalog price | 591,81 zł (481,15 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 100 g |
ETIM class: | Combined arrester for power supply systems |
System configuration DC: | no |
System configuration IT: | no |
System configuration TN: | yes |
System configuration TN-C: | yes |
System configuration TN-C-S: | no |
System configuration TN-S: | yes |
System configuration TT: | yes |
System configuration other: | no |
Voltage protection level L-N: | 1.4 kV |
Voltage protection level L-PE: | 1.4 kV |
Construction size: | 1 modular spacing |
Remote signalling: | no |
Integrated backup fuse: | no |
Energy-coordinated protection effect with regard to the terminal equipment: | no |
Voltage switching spark gap technology: | no |
Overcurrent protected voltage tapping: | no |
Degree of protection (IP): | IP20 |
Number of poles: | 1 |
