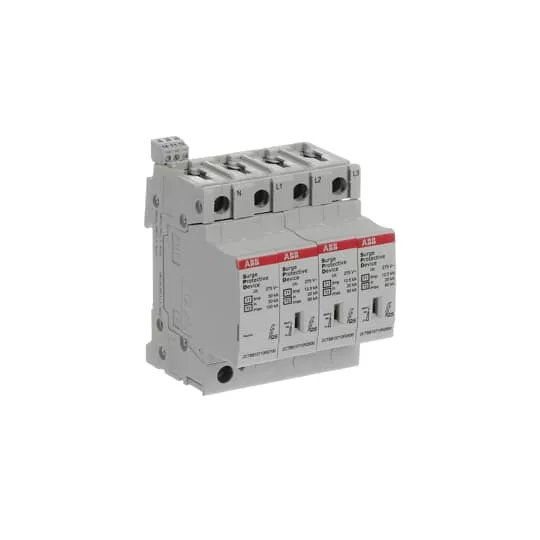

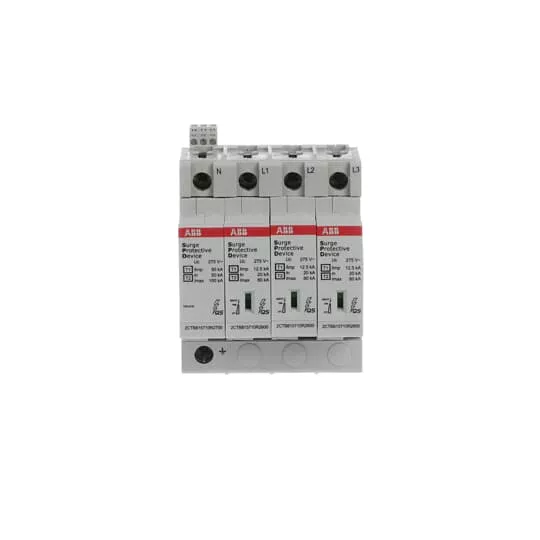

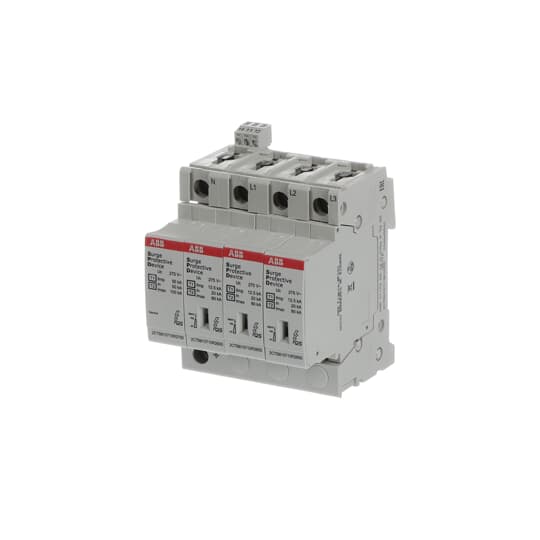

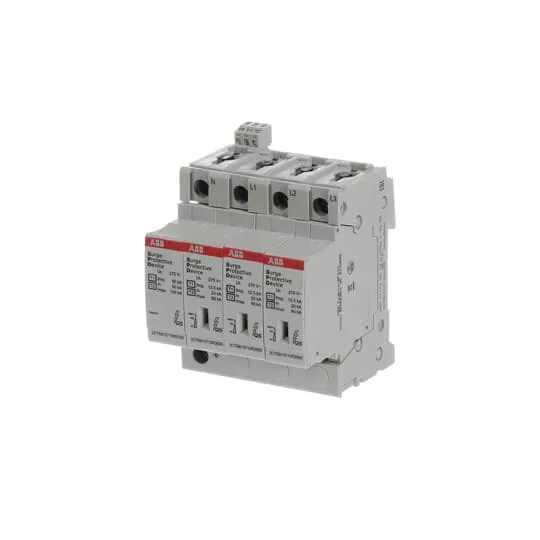

OVR T1-T2 N3 12.5-275s P TS QS ogranicznik przepięć | T1-T2 | 3+1 | 275V | Iimp= 12,5kA | In= 20kA | TN-S / TT | + styk |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CTB815710R0900 |
| GTIN(EAN) | 3660308524935 |
| Price unit | piece |
| Catalog price | 4 115,54 zł (3 345,97 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 600 g |
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | no |
| Voltage protection level L-N: | 1.4 kV |
| Voltage protection level L-PE: | 1.5 kV |
| Voltage protection level N-PE: | 1.4 kV |
| Construction size: | 4 modular spacing |
| Remote signalling: | yes |
| Integrated backup fuse: | no |
| Energy-coordinated protection effect with regard to the terminal equipment: | no |
| Voltage switching spark gap technology: | no |
| Overcurrent protected voltage tapping: | no |
| Degree of protection (IP): | IP20 |
| Number of poles: | 4 |
