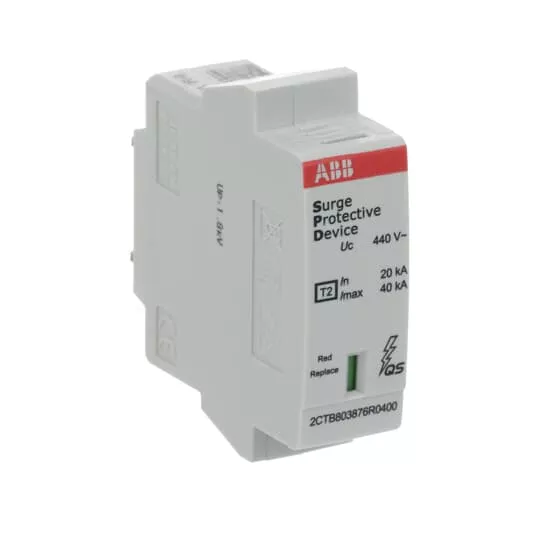

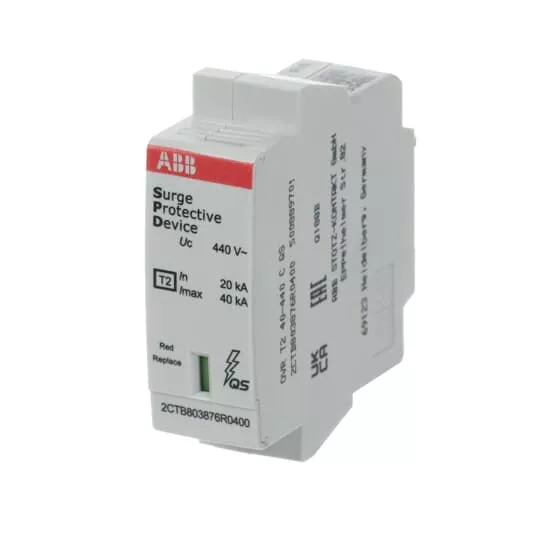

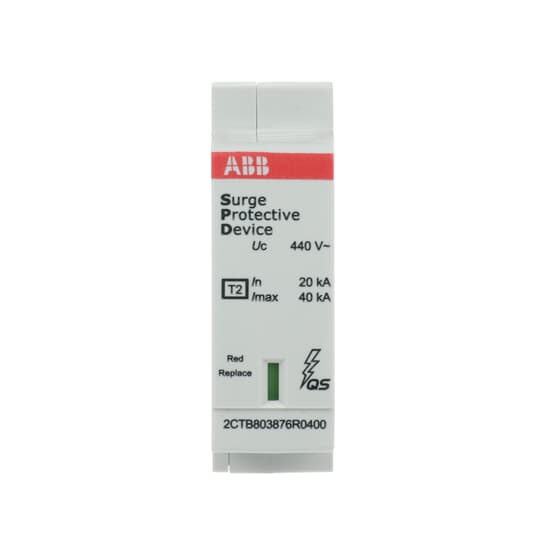

OVR T2 40-440 C QS wkładka ogranicznika | T2 | fazowa | 440V | In= 20kA |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CTB803876R0400 |
| GTIN(EAN) | 3660308520920 |
| Price unit | piece |
| Catalog price | 296,21 zł (240,82 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 75 g |
| ETIM class: | Surge protection device for power supply systems |
| System configuration DC: | no |
| System configuration IT: | yes |
| System configuration TN: | yes |
| System configuration TN-C: | yes |
| System configuration TN-C-S: | yes |
| System configuration TN-S: | yes |
| System configuration TT: | yes |
| System configuration other: | no |
| Number of conductors (without earthing): | 1 |
| Nominal discharge surge current (8/20): | 20 kA |
| Max. discharge surge current (8/20): | 20 kA |
| Nominal voltage AC: | 230 V |
| Max. continuous voltage AC: | 440 V |
| Voltage protection level: | 1.4 kV |
| Voltage protection level L-N: | 1.4 kV |
| Voltage protection level N-PE: | 1.4 kV |
| Max. overcurrent protection device, parallel connection (fuse): | 125 A |
| Max. overcurrent protection device, series connection (fuse): | 125 A |
| Short-circuit breaking capacity (Isccr): | 100 kA |
| Integrated short-circuit protection: | no |
| Integrated backup fuse: | no |
| Leakage-current free: | no |
| Mounting method: | Other |
| Construction size: | 2 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 25 mm² |
| Max. conductor cross section flexible (fine-strand): | 16 mm² |
| With remote signalling contact: | no |
| Signalling at the device: | Optical |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
