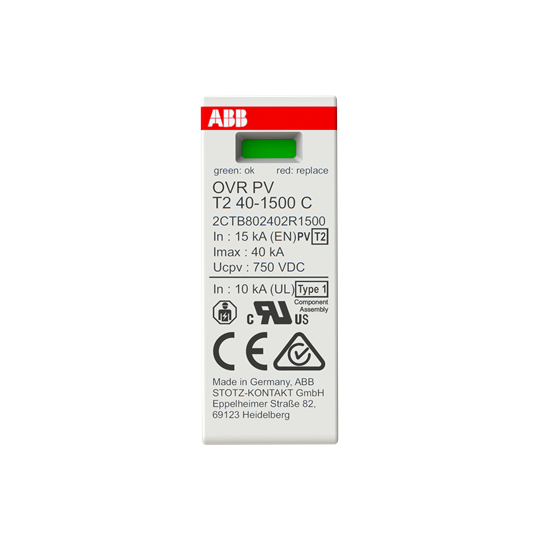

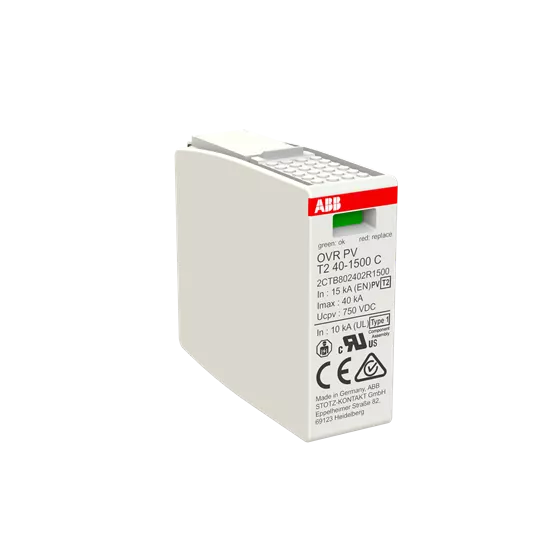

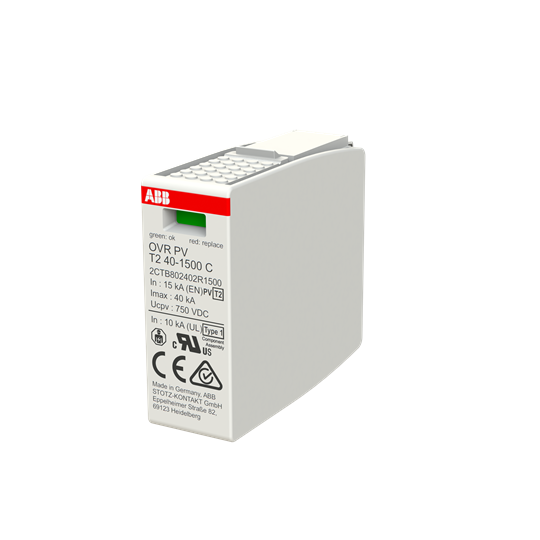

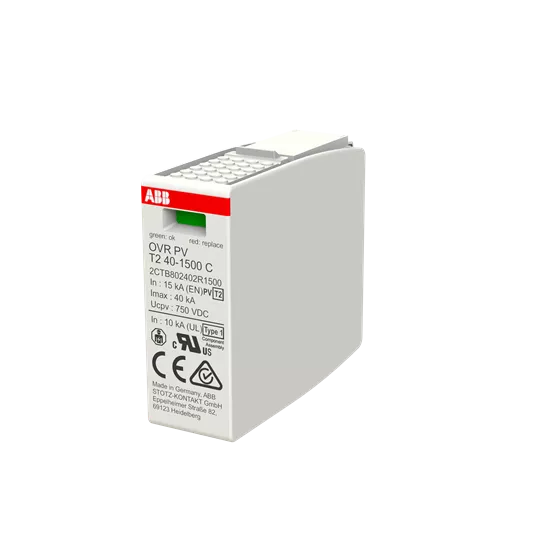

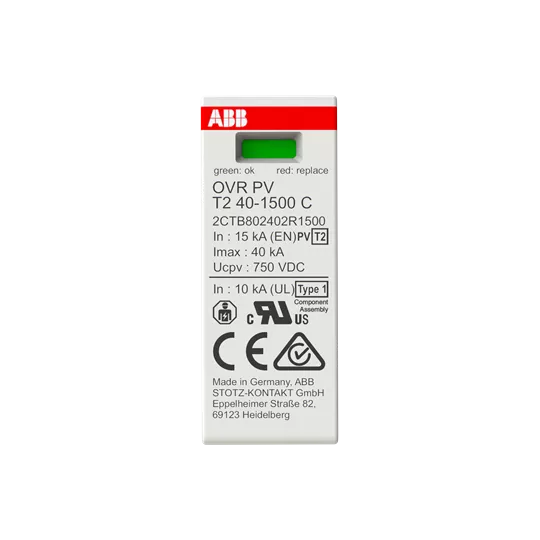

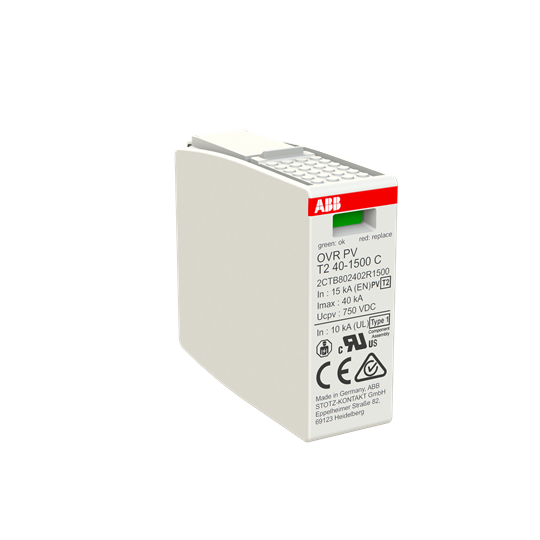

OVR PV T2 40-1500 C ogranicznik przepięć | T2 | 1+1 | 1500V | In= 40kA | PV |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CTB802402R1500 |
| GTIN(EAN) | 4053546050325 |
| Price unit | piece |
| Catalog price | 844,51 zł (686,59 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 63 g |
| ETIM class: | Surge protection device for power supply systems |
| Number of conductors (without earthing): | 2 |
| Nominal discharge surge current (8/20): | 20 kA |
| Max. continuous voltage AC: | 1500 V |
| Mounting method: | Other |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Max. conductor cross section flexible (fine-strand): | 25 mm² |
| Signalling at the device: | Optical |
| System configuration DC: | yes |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Max. discharge surge current (8/20): | 20 kA |
| Nominal voltage DC: | 1500 V |
| Max. continuous voltage DC: | 1500 V |
| Max. PV-voltage: | 1500 V |
| Voltage protection level: | 4 kV |
| Short-circuit breaking capacity (Isccr): | 10 kA |
| Integrated short-circuit protection: | no |
| Integrated backup fuse: | no |
| Leakage-current free: | no |
| Construction size: | 1 modular spacing |
| With remote signalling contact: | no |
| Category type 2: | yes |
| Degree of protection (IP): | IP20 |
