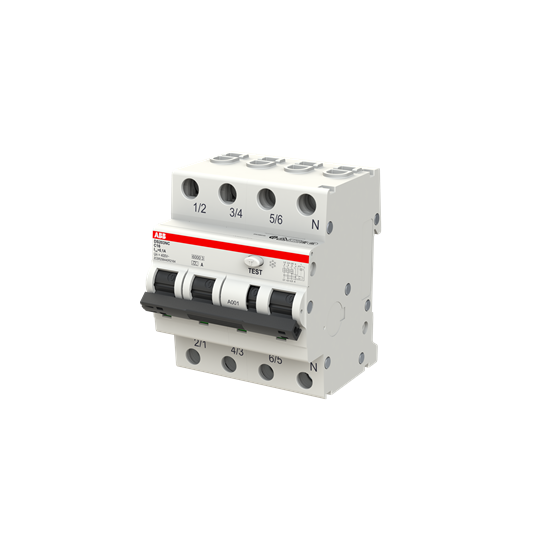

DS203NC C16 APR100 wyłącznik różnicowo-nadprądowy | 3P+N | char. C | 16A | 6kA | 100mA | A | krótkozwłoczny |
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSR256440R2164 |
GTIN(EAN) | 8012542349624 |
Price unit | piece |
Catalog price | 2 490,39 zł (2 024,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 480 g |
ETIM class: | Earth leakage circuit breaker |
Number of poles (total): | 4 |
Number of protected poles: | 3 |
Rated voltage: | 415 V |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Rated current: | 16 A |
Leakage current type: | A |
Current limiting class: | 3 |
Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
Rated short-circuit breaking capacity according to IEC 60947-2: | 10 kA |
Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
Disconnection characteristic: | Short-time delayed |
Surge current capacity: | 3 kA |
Voltage type: | AC |
Frequency: | 50/60 Hz |
Release characteristic: | C |
Concurrently switching neutral conductor: | yes |
With interlocking device: | yes |
Pollution degree: | 2 |
Ambient temperature during operating: | -25 - 55 °C |
Width in number of modular spacings: | 4 |
Built-in depth: | 69 mm |
Flush-mounted installation: | no |
Anti-nuisance tripping version: | yes |
Degree of protection (IP): | IP2X |
Connectable conductor cross section multi-wired: | 1 - 25 mm² |
Over voltage category: | 3 |
Connectable conductor cross section solid-core: | 25 - 25 mm² |
