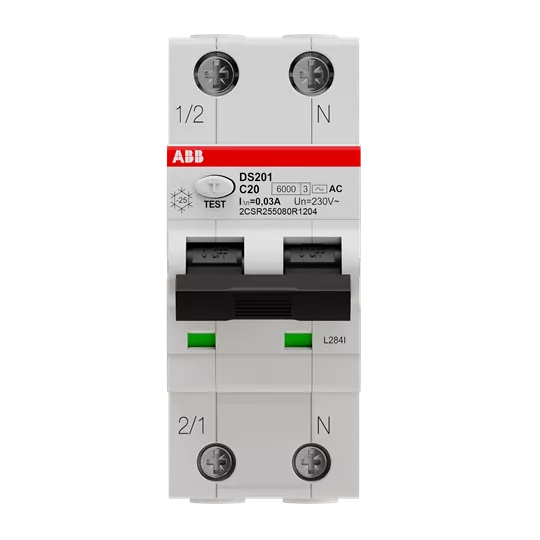

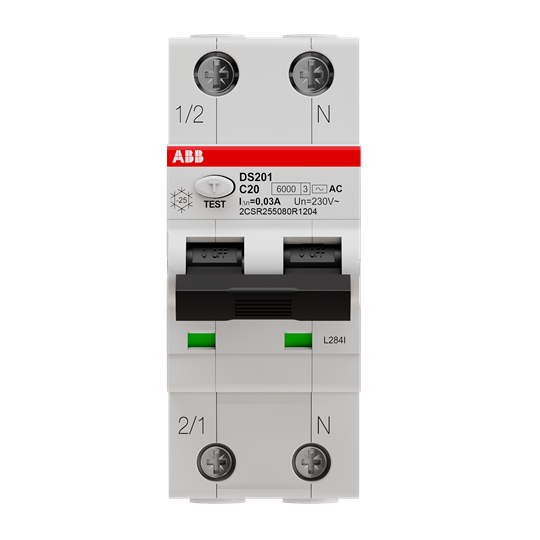

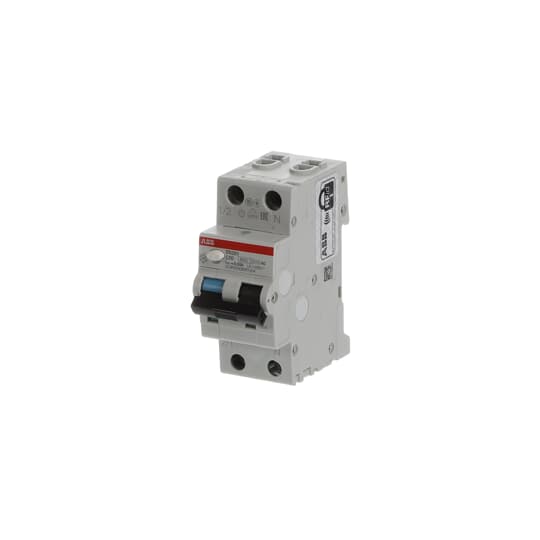

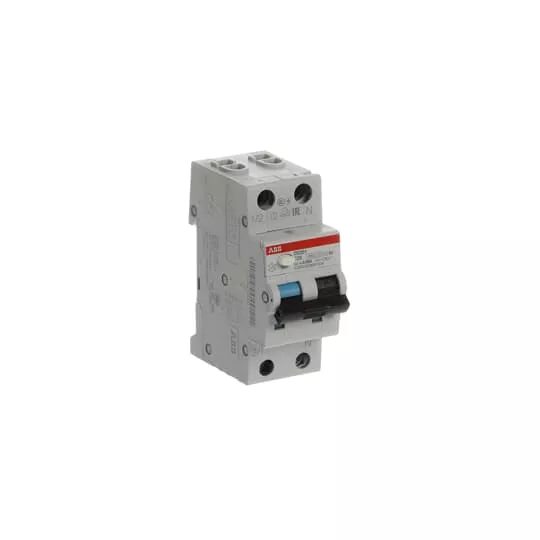

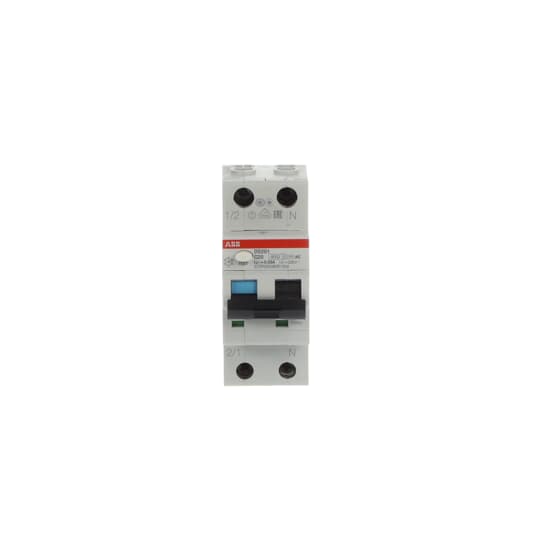

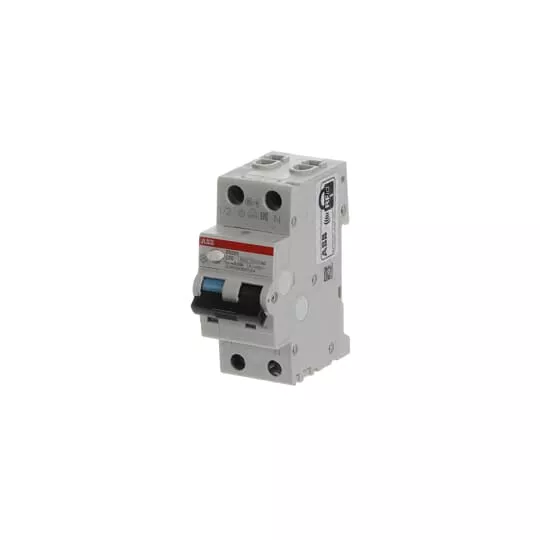

DS201 C20 AC30 wyłącznik różnicowo-nadprądowy | 1P+N | char. C | 20A | 6kA | 30mA | AC | bezzwłoczny |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CSR255080R1204 |
| GTIN(EAN) | 8012542049111 |
| Price unit | piece |
| Catalog price | 430,65 zł (350,12 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 200 g |
| ETIM class: | Earth leakage circuit breaker |
| Number of poles (total): | 2 |
| Number of protected poles: | 1 |
| Rated voltage: | 240 V |
| Rated insulation voltage Ui: | 500 V |
| Rated current: | 20 A |
| Leakage current type: | AC |
| Current limiting class: | 3 |
| Rated short-circuit breaking capacity according to EN 61009: | 6 kA |
| Rated short-circuit breaking capacity according to IEC 60947-2: | 10 kA |
| Voltage type: | AC |
| Frequency: | 50/60 Hz |
| Release characteristic: | C |
| Concurrently switching neutral conductor: | yes |
| With interlocking device: | no |
| Pollution degree: | 2 |
| Ambient temperature during operating: | -25 - 55 °C |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69 mm |
| Flush-mounted installation: | no |
| Anti-nuisance tripping version: | no |
| Degree of protection (IP): | IP20 |
| Over voltage category: | 3 |
| Surge current capacity: | 0 kA |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated fault current: | 0.03 A |
| Power loss: | 5.7 W |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Disconnection characteristic: | Undelayed |
| Connectable conductor cross section multi-wired: | 0.75 - 16 mm² |
