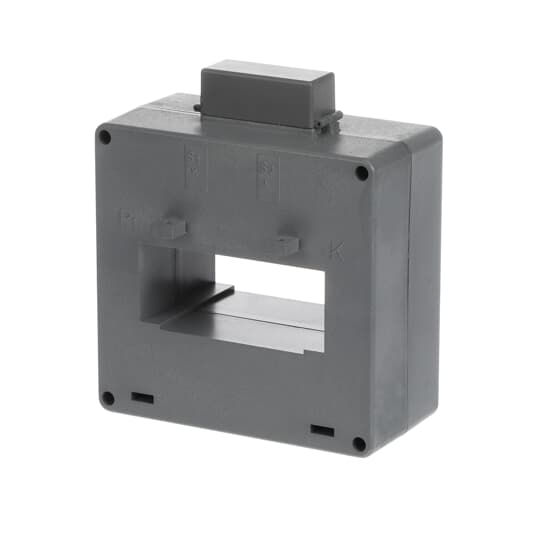

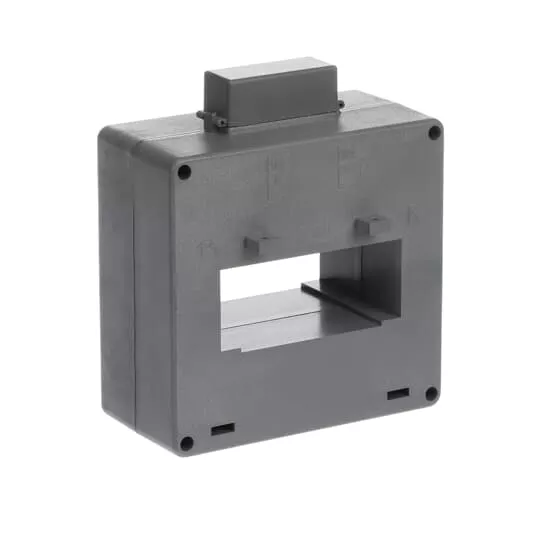

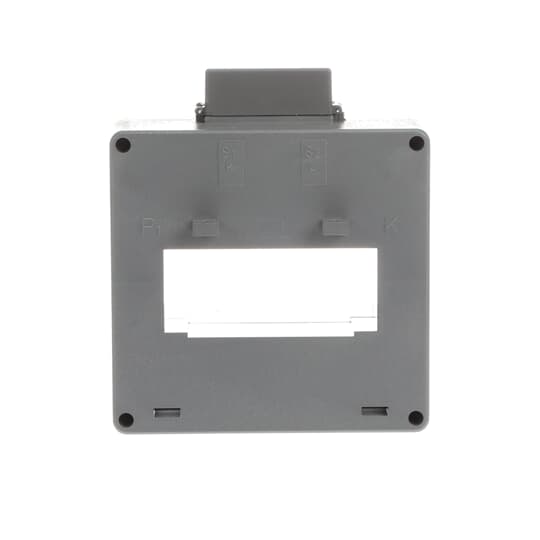

CT8/2500 Przekładnik prądowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CSG521240R1101 |
| GTIN(EAN) | 8012542607502 |
| Price unit | piece |
| Catalog price | 1 435,07 zł (1 166,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 910 g |
| ETIM class: | Current transformer |
| Model: | Through-feed current converter |
| Rated primary current: | 2500 A |
| Rated secondary current: | 5 A |
| Rated secondary apparent power: | 1 VA |
| Accuracy class: | 0.5 |
| Overcurrent limiting factor: | FS 5 |
| Calibrated: | no |
| With shock protection: | yes |
| Opening diameter: | 125 mm |
| Snap mounting: | no |
| With copper rail: | no |
| Secondary connection: | Screw connection |
| Number of primary inputs: | 1 |
| Height opening: | 34.6 - 34.6 mm |
| Width opening: | 82.5 - 82.5 mm |
