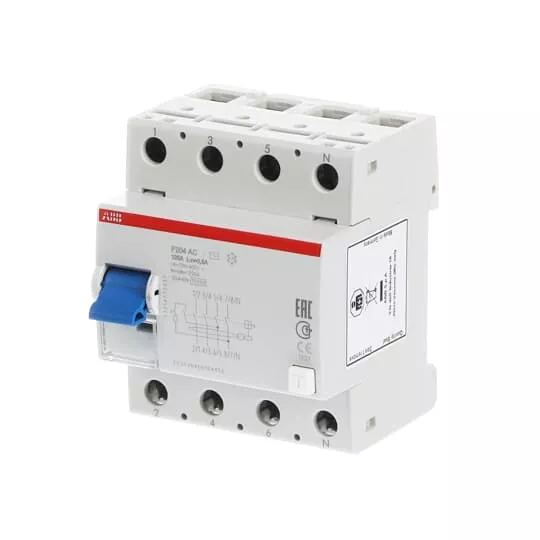

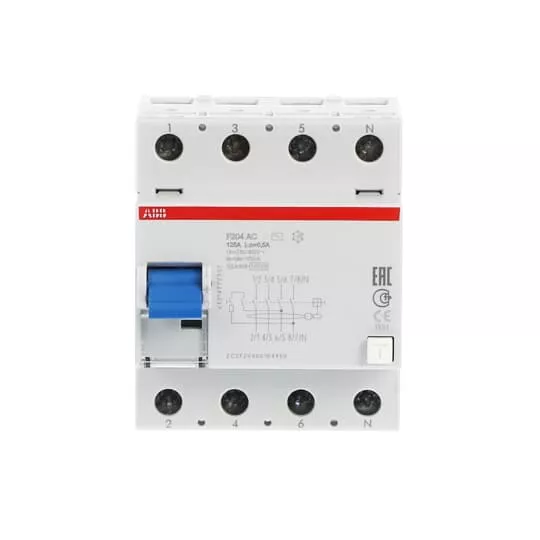

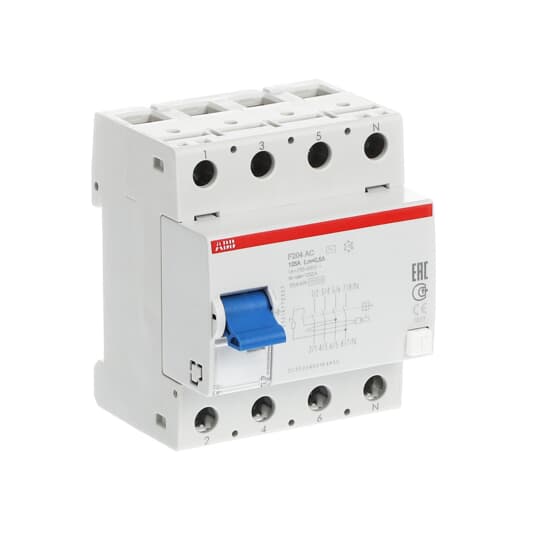

F204 AC-125/0.5 wyłącznik różnicowo-prądowy | 4P | AC | 125A | 500mA | bezzwłoczny |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CSF204001R4950 |
| GTIN(EAN) | 8012542941804 |
| Price unit | piece |
| Catalog price | 4 233,73 zł (3 442,06 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 500 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 4 |
| Rated voltage: | 400 V |
| Rated current: | 125 A |
| Rated fault current: | 0.5 A |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | AC |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| Short-circuit breaking capacity (Icw): | 1 kA |
| Surge current capacity: | 0.25 kA |
| With interlocking device: | yes |
| Frequency: | 50 Hz |
| Additional equipment possible: | yes |
| Degree of protection (IP): | IP2X |
| Width in number of modular spacings: | 4 |
| Built-in depth: | 69 mm |
| Ambient temperature during operating: | -25 - 40 °C |
| Pollution degree: | 2 |
| Connectable conductor cross section multi-wired: | 0 - 25 mm² |
| Connectable conductor cross section solid-core: | 35 - 35 mm² |
