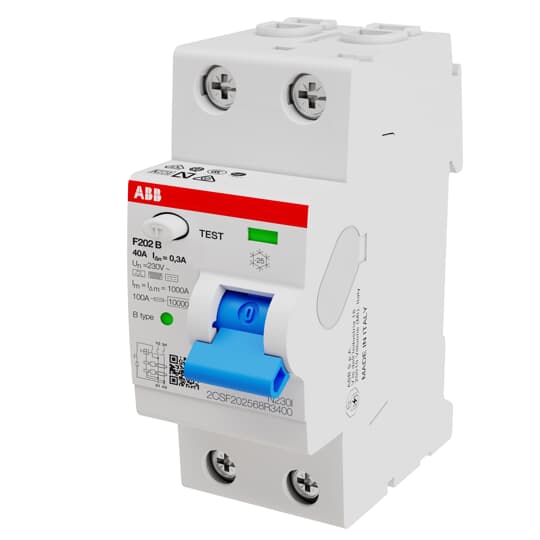

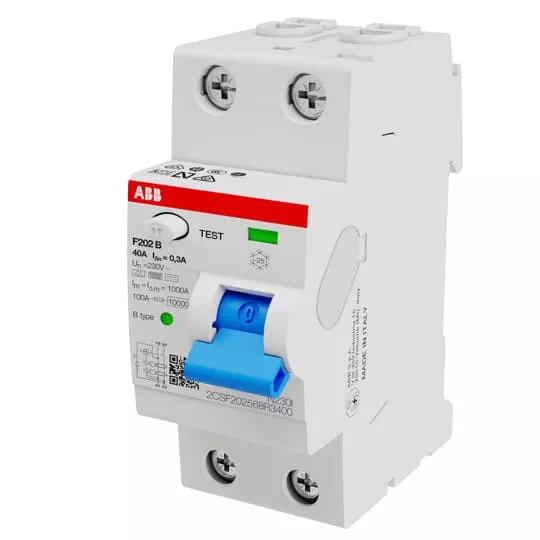

F202 B-40/0.3 wyłącznik różnicowo-prądowy | 2P | B | 40A | 300mA | krótkozwłoczny |
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSF202568R3400 |
GTIN(EAN) | 8012542341758 |
Price unit | piece |
Catalog price | 3 295,72 zł (2 679,45 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 220 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Number of poles: | 2 |
Rated voltage: | 230 V |
Rated current: | 40 A |
Rated insulation voltage Ui: | 440 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Mounting method: | DIN rail |
Leakage current type: | B |
Selective protection: | no |
Short-time delayed tripping: | no |
Surge current capacity: | 3 kA |
With interlocking device: | no |
Frequency: | Other |
Additional equipment possible: | yes |
Degree of protection (IP): | IP20 |
Width in number of modular spacings: | 2 |
Built-in depth: | 69 mm |
Ambient temperature during operating: | -25 - 65 °C |
Pollution degree: | 2 |
Connectable conductor cross section solid-core: | 1 - 25 mm² |
Explosion-proof: | no |
Power loss: | 3.6 W |
