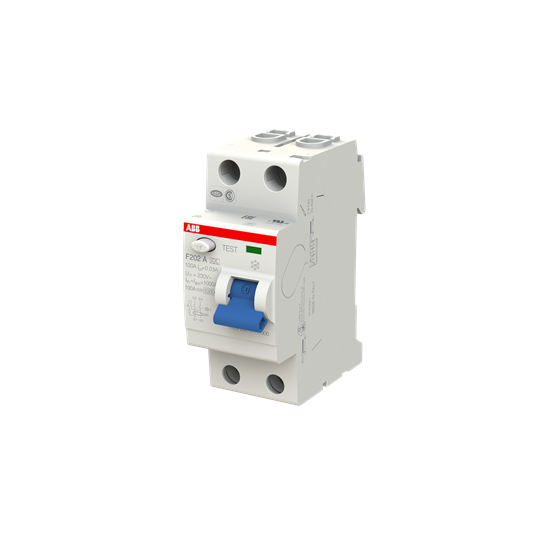

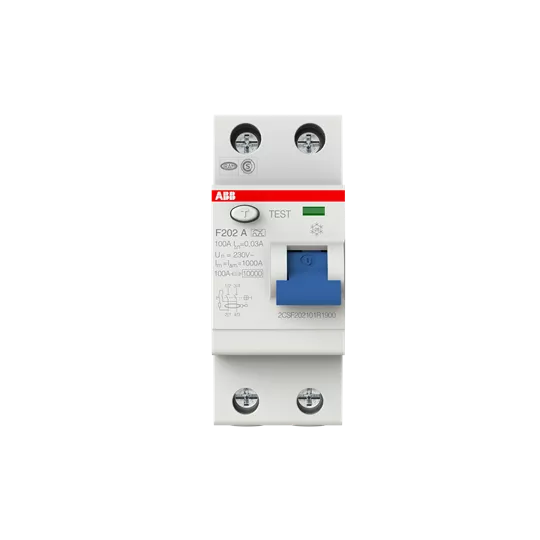

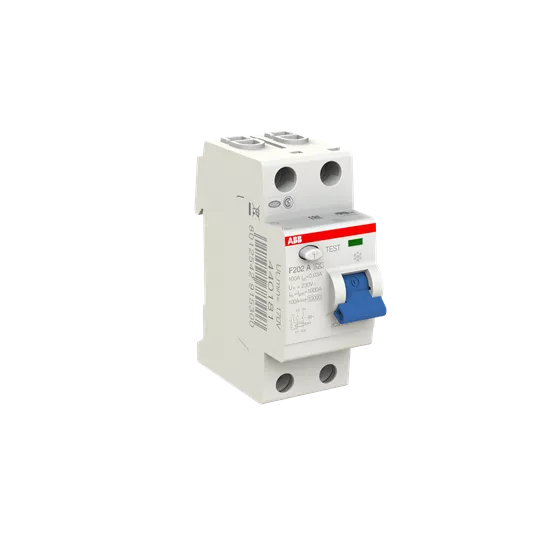

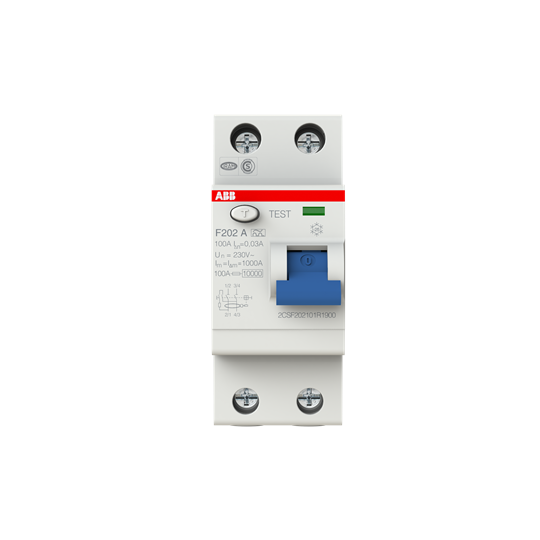

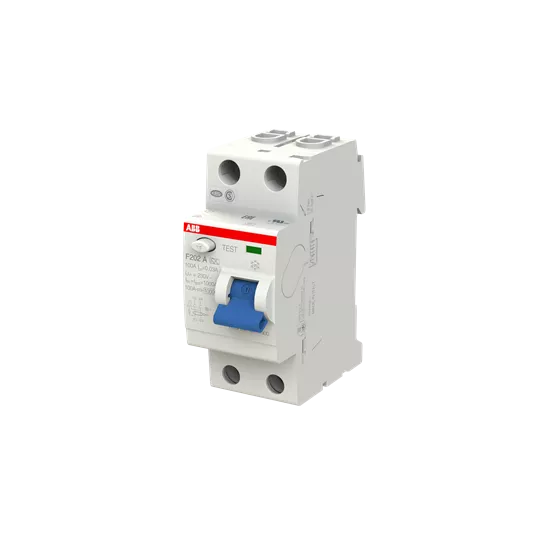

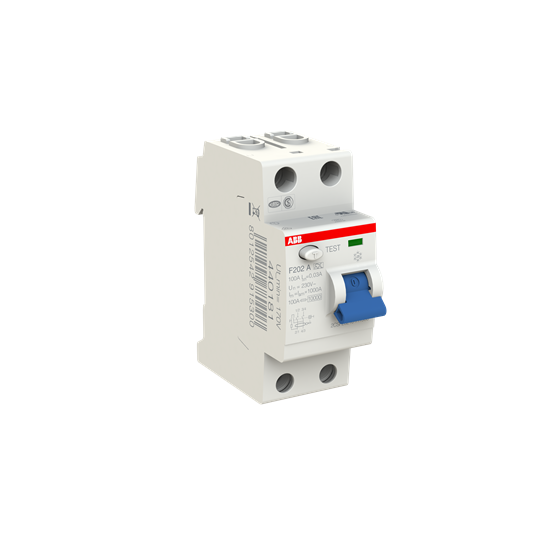

F202 A-100/0.03 wyłącznik różnicowo-prądowy | 2P | A | 100A | 30mA | bezzwłoczny |
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSF202101R1900 |
GTIN(EAN) | 8012542915300 |
Price unit | piece |
Catalog price | 879,67 zł (715,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 200 g |
ETIM class: | Residual current circuit breaker (RCCB) |
Number of poles: | 2 |
Rated voltage: | 230 V |
Rated current: | 100 A |
Rated fault current: | 0.03 A |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Mounting method: | DIN rail |
Leakage current type: | A |
Selective protection: | no |
Short-time delayed tripping: | no |
Short-circuit breaking capacity (Icw): | 1 kA |
Voltage type: | AC |
With interlocking device: | yes |
Frequency: | Other |
Additional equipment possible: | yes |
Degree of protection (IP): | IP2X |
Width in number of modular spacings: | 2 |
Built-in depth: | 69 mm |
Ambient temperature during operating: | -25 - 55 °C |
Pollution degree: | 2 |
Explosion-proof: | no |
Connectable conductor cross section multi-wired: | 0 - 0 mm² |
Connectable conductor cross section solid-core: | 35 - 35 mm² |
