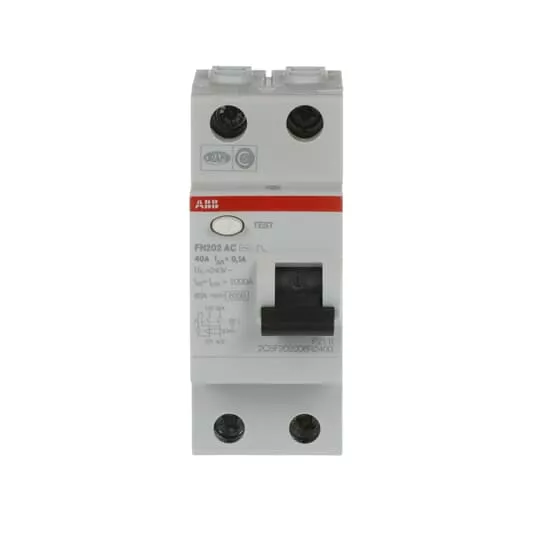

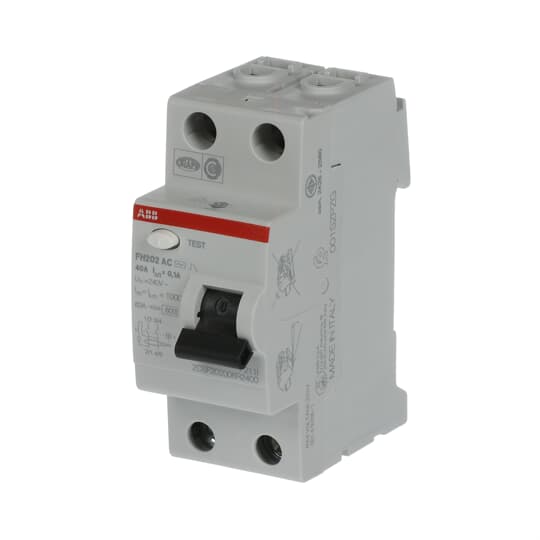

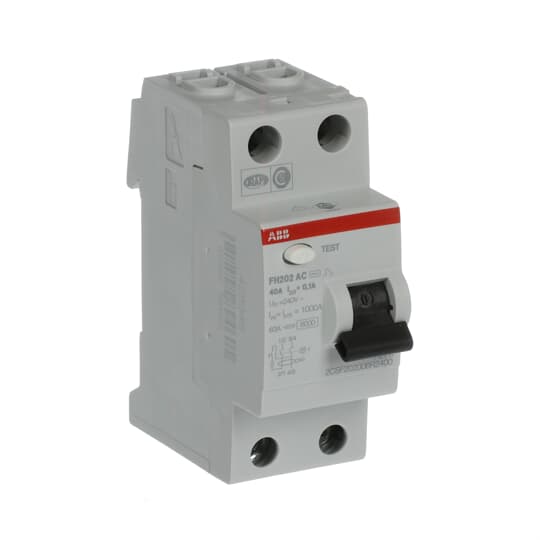

FH202 AC-40/0.1 wyłącznik różnicowo-prądowy | 2P | AC | 40A | 100mA | bezzwłoczny |
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CSF202006R2400 |
| GTIN(EAN) | 8012542894605 |
| Price unit | piece |
| Catalog price | 968,18 zł (787,14 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 200 g |
| ETIM class: | Residual current circuit breaker (RCCB) |
| Number of poles: | 2 |
| Rated voltage: | 230 V |
| Rated current: | 40 A |
| Rated fault current: | 0.1 A |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Mounting method: | DIN rail |
| Leakage current type: | AC |
| Selective protection: | no |
| Short-time delayed tripping: | no |
| Short-circuit breaking capacity (Icw): | 1 kA |
| Surge current capacity: | 0.25 kA |
| With interlocking device: | yes |
| Frequency: | 50 Hz |
| Additional equipment possible: | no |
| Degree of protection (IP): | IP2X |
| Width in number of modular spacings: | 2 |
| Built-in depth: | 69 mm |
| Ambient temperature during operating: | -5 - 40 °C |
| Connectable conductor cross section multi-wired: | 10 - 25 mm² |
| Connectable conductor cross section solid-core: | 25 - 25 mm² |
