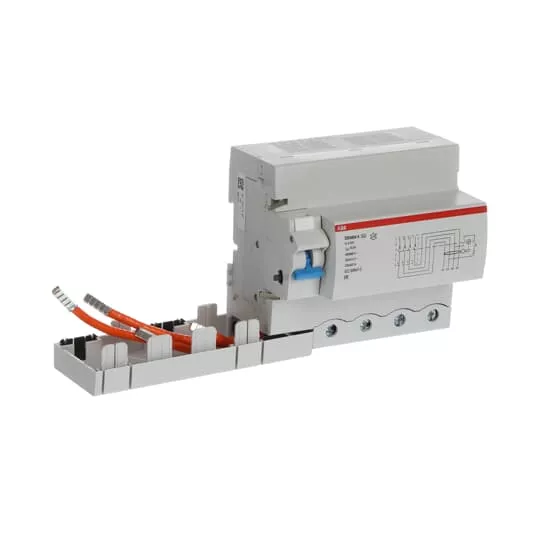

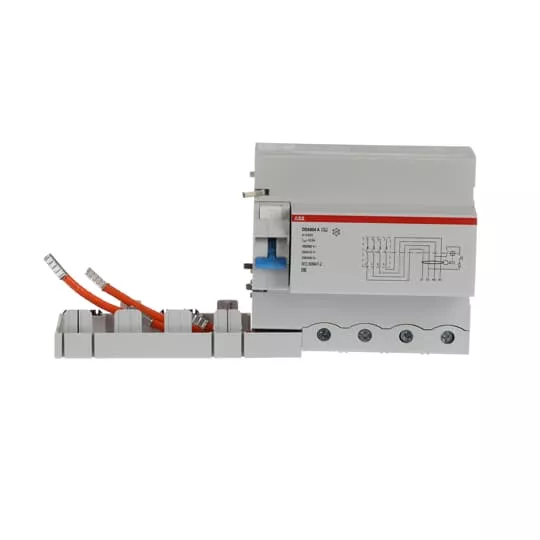

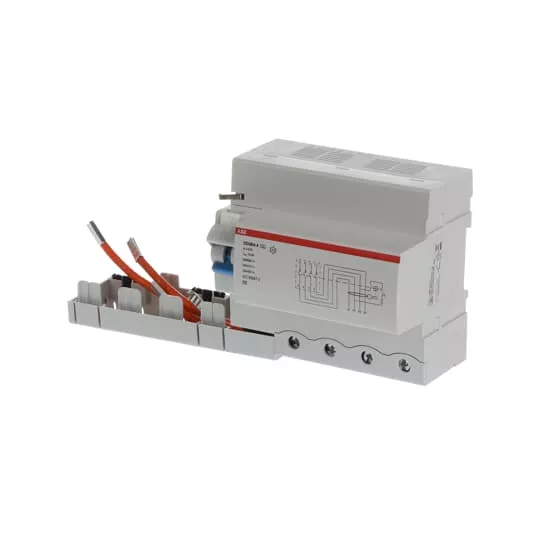

DDA804 A-63/0,5 Blok różnicowo-prądowy
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSB804101R4630 |
GTIN(EAN) | 8012542925200 |
Price unit | piece |
Catalog price | 2 476,20 zł (2 013,17 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 460 g |
ETIM class: | Residual current circuit breaker (RCCB) module |
Nominal voltage: | 230 - 690 V |
Nominal current: | 63 A |
Rated fault current adjustable: | no |
Delay adjustable: | no |
Number of poles: | 4 |
Leakage current type: | A |
Surge current capacity: | 0.25 kA |
Frequency: | 50/60 Hz |
Rated insulation voltage Ui: | 690 V |
Rated impulse withstand voltage Uimp: | 6 kV |
Connectable conductor cross section solid-core: | 6 - 50 mm² |
Connectable conductor cross section multi-wired: | 6 - 70 mm² |
Anti-nuisance tripping version: | no |
With interlocking device: | no |
Degree of protection (IP): | IP2X |
Ambient temperature during operating: | -25 - 60 °C |
Rated fault current: | 0.5 - 0.5 A |
