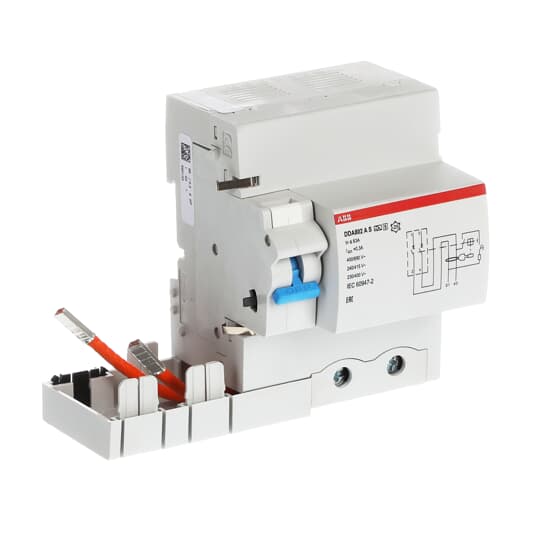

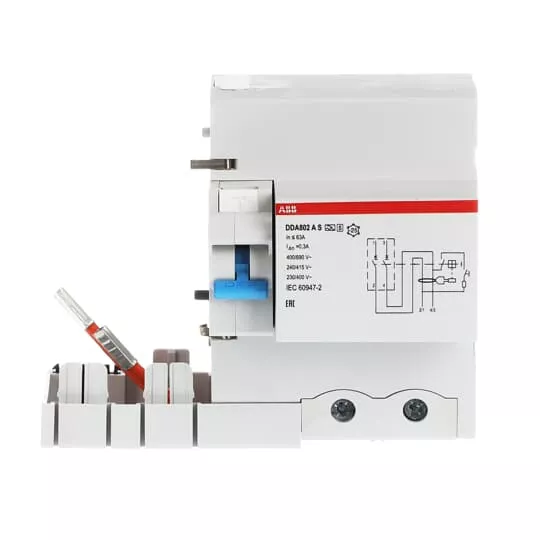

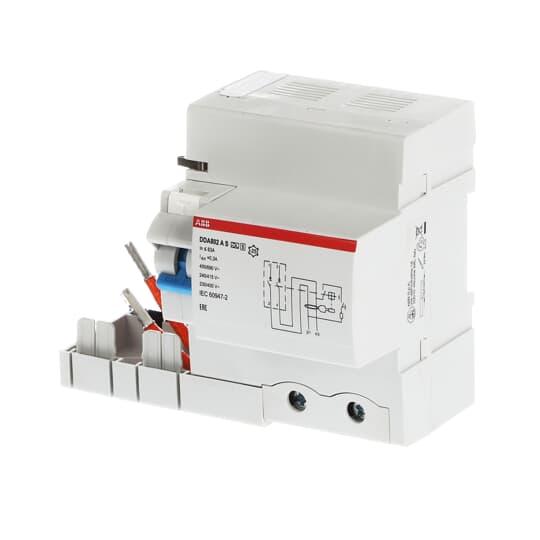

DDA802 A S-63/0,3 Blok różnicowo-prądowy
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CSB802201R3630 |
| GTIN(EAN) | 8012542920601 |
| Price unit | piece |
| Catalog price | 2 948,13 zł (2 396,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 300 g |
| ETIM class: | Residual current circuit breaker (RCCB) module |
| Nominal voltage: | 230 - 400 V |
| Nominal current: | 63 A |
| Rated fault current adjustable: | no |
| Delay adjustable: | no |
| Number of poles: | 2 |
| Leakage current type: | A |
| Surge current capacity: | 5 kA |
| Frequency: | 50/60 Hz |
| Rated insulation voltage Ui: | 690 V |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Connectable conductor cross section solid-core: | 6 - 50 mm² |
| Connectable conductor cross section multi-wired: | 6 - 70 mm² |
| Anti-nuisance tripping version: | yes |
| With interlocking device: | no |
| Degree of protection (IP): | IP2X |
| Ambient temperature during operating: | -25 - 60 °C |
| Rated fault current: | 0.3 - 0.3 A |
| Power loss: | 9 W |
