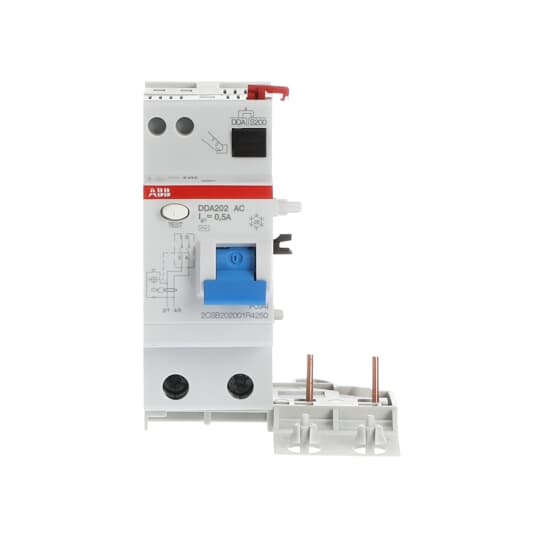

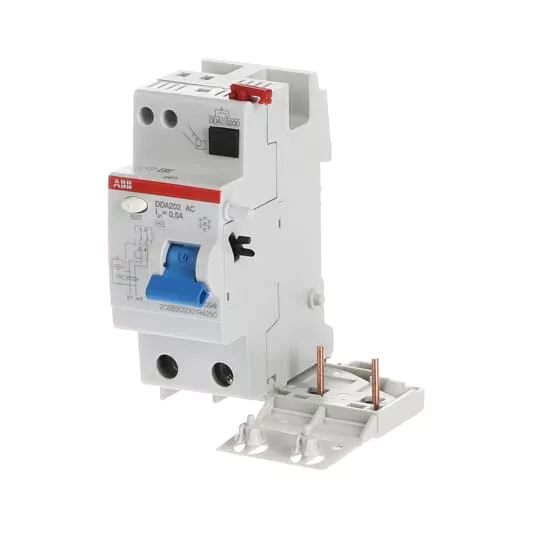

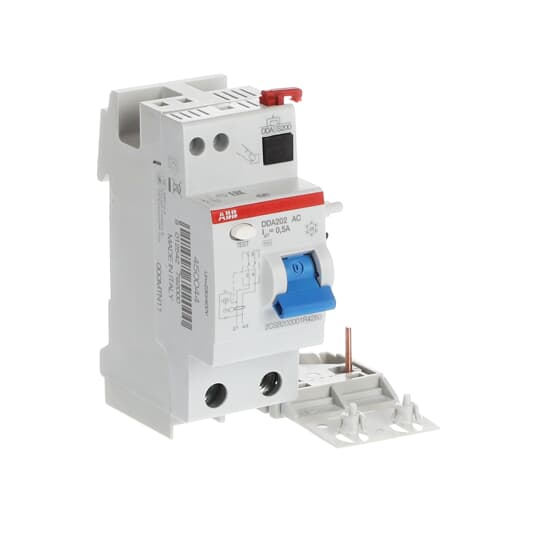

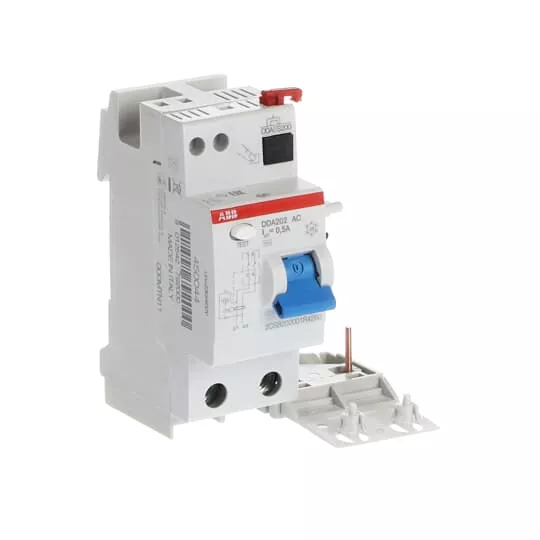

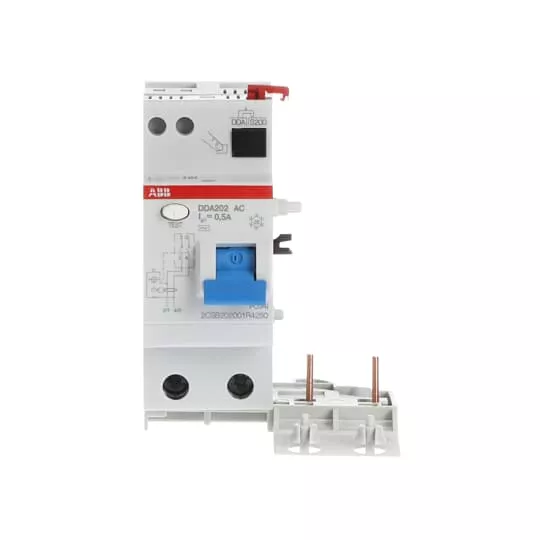

DDA202 AC-25/0,5 Blok różnicowo-prądowy
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSB202001R4250 |
GTIN(EAN) | 8012542792000 |
Price unit | piece |
Catalog price | 733,39 zł (596,25 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 210 g |
ETIM class: | Residual current circuit breaker (RCCB) module |
Nominal voltage: | 230 - 400 V |
Nominal current: | 25 A |
Rated fault current adjustable: | no |
Delay adjustable: | no |
Number of poles: | 2 |
Leakage current type: | AC |
Frequency: | 50/60 Hz |
Rated insulation voltage Ui: | 500 V |
Rated impulse withstand voltage Uimp: | 4 kV |
Anti-nuisance tripping version: | no |
With interlocking device: | yes |
Degree of protection (IP): | IP2X |
Ambient temperature during operating: | -25 - 55 °C |
Rated fault current: | 0.5 - 0.5 A |
Connectable conductor cross section solid-core: | 25 - 25 mm² |
Connectable conductor cross section multi-wired: | 25 - 25 mm² |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Firma Handlowa "ELEKTRET" Spółka komandytowa Jacek Bieda, Agata Mól
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-07-26 11:16:12 |
Files to download: |
|
External links: |
