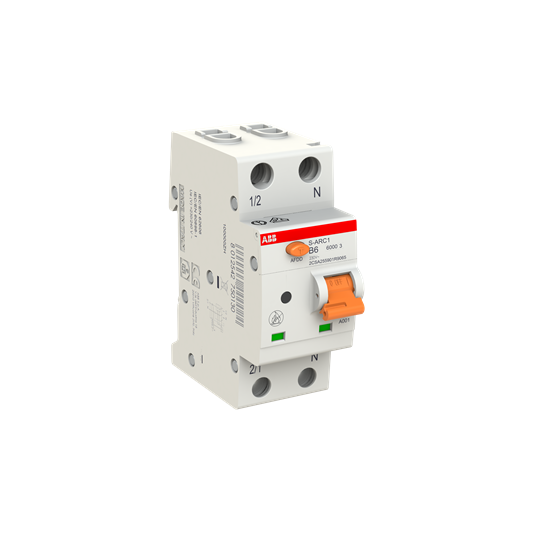

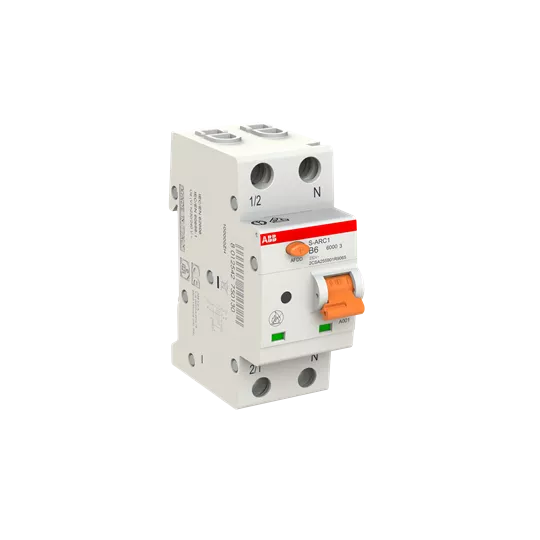

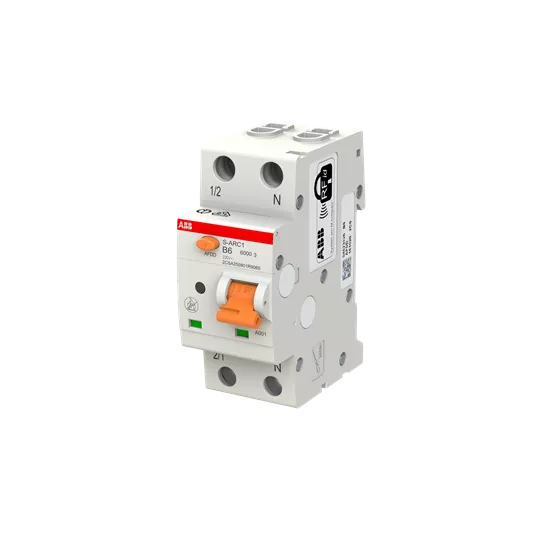

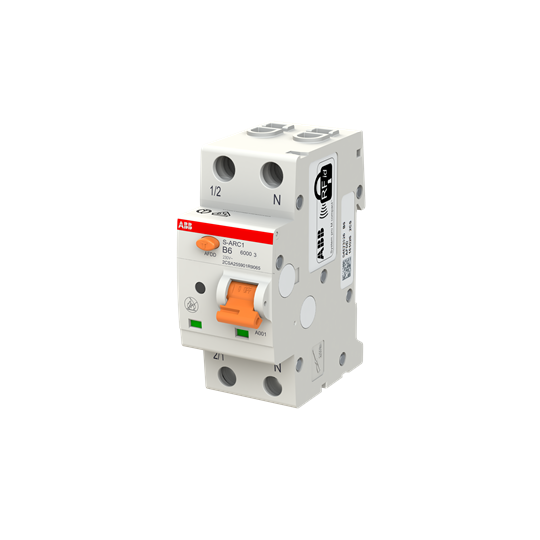

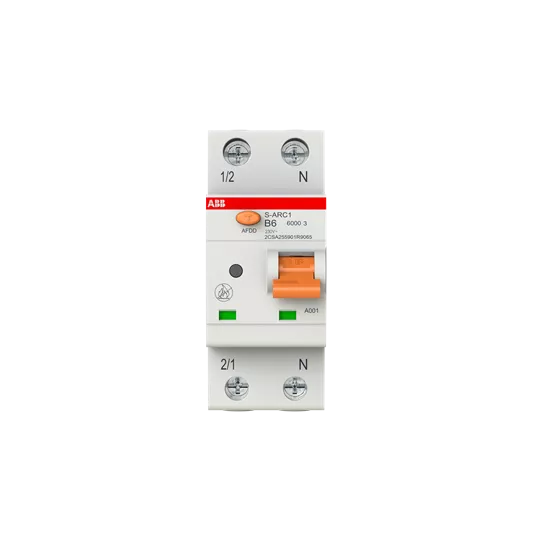

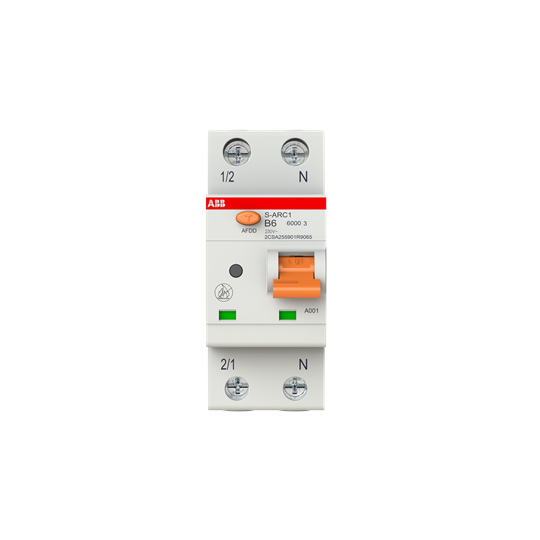

S-ARC1 B6 Wyłącznik nadmiarowo-prądowy + AFDD
Information | Value |
---|---|
Supplier | ABB Sp. z o.o. (NN) |
Symbol | 2CSA255901R9065 |
GTIN(EAN) | 8012542750130 |
Price unit | piece |
Catalog price | 1 838,21 zł (1 494,48 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 180 g |
ETIM class: | Miniature circuit breaker (MCB) with auxiliary device |
Release characteristic: | B |
Number of poles: | 2 |
Rated current: | 6 A |
Rated short-circuit breaking capacity according to EN 60898: | 7.5 kA |
Rated short-circuit breaking capacity according to IEC 60947-2: | 7.5 kA |
Voltage type: | AC |
Current limiting class: | 3 |
Concurrently switching neutral conductor: | yes |
Over voltage category: | 3 |
Pollution degree: | 2 |
Width in number of modular spacings: | 2 |
Built-in depth: | 69 mm |
Additional equipment attached at delivery: | Fire protection switch |
Degree of protection (IP): | IP40 |
Rated voltage: | 240 V |
Frequency: | 50 - 60 Hz |
