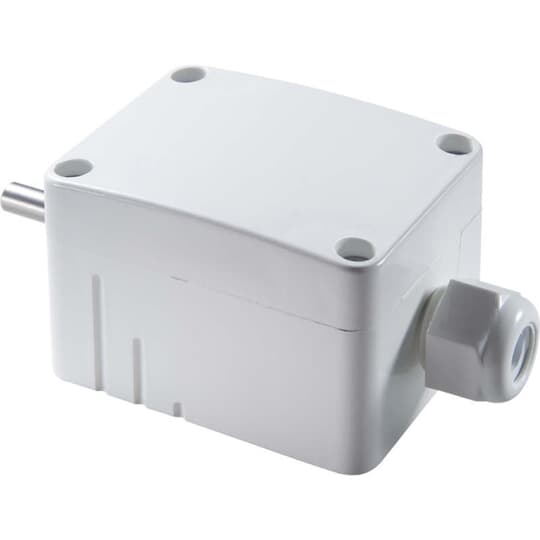

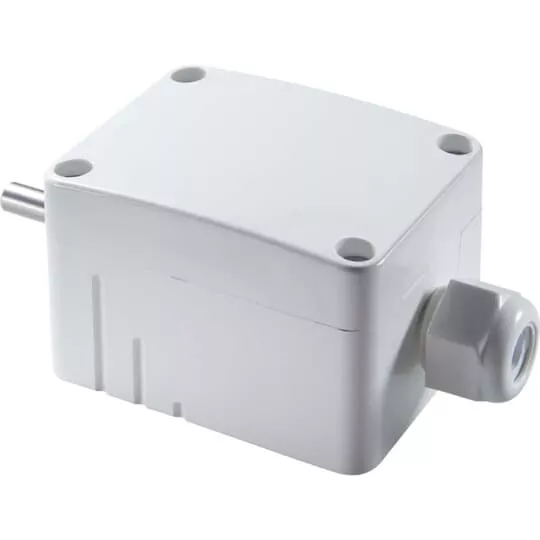

Czujnik temperatury zewnętrznej AGS54, temp.
| Information | Value |
|---|---|
| Supplier | ABB Sp. z o.o. (NN) |
| Symbol | 2CQG505101R2021 |
| GTIN(EAN) | 5391539124257 |
| Price unit | piece |
| Catalog price | 47,34 zł (38,49 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 100 g |
| ETIM class: | Sensor (HVAC) |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
| Suitable for wall mounting: | yes |
| Suitable for ceiling mounting: | no |
| Suitable for duct mounting: | no |
| Suitable for tube mounting: | no |
| Suitable for air: | yes |
| Suitable for liquids: | no |
| Suitable for gases: | yes |
| With housing: | yes |
| Sensor element inside housing: | yes |
| Sensor element outside housing: | no |
| Fixed cable to sensor: | no |
| Technology: | Other |
| Active temperature measurement: | no |
| Passive temperature measurement: | yes |
| Average temperature measuring: | no |
| Measurement of CO2: | no |
| Measurement of VOC: | no |
| Measurement of relative air humidity: | no |
| Measurement of absolute air humidity: | no |
| Enthalpy measurement: | no |
| Measurement of dewpoint: | no |
| Particulate matter measurement (PM): | no |
| Temperature measuring range: | -50 - 130 °C |
| Measuring range relative air humidity: | 0 - 85 % |
| Offset setting possible: | no |
| Trend representation: | no |
| Error registration possible: | no |
| Sensor type: | Other |
| Tolerance: | 1 % |
| Supporting protocol for BACnet: | no |
| Supporting protocol for Modbus: | no |
| Supporting protocol for MP (multi point): | no |
| Supporting protocol for KNX: | no |
| LoRa technology: | no |
| NFC (Near Field Communication): | no |
| Bluetooth: | no |
| Wi-Fi-compatible: | no |
| Ambient temperature: | -25 - 90 °C |
| Degree of protection (IP): | IP65 |
| Housing height: | 45 mm |
| Housing width: | 65 mm |
| Housing depth: | 50 mm |
| Housing colour: | White |
| Cover attachment: | Other |
| Sensor length: | 25 mm |
| Material element: | Stainless steel |
| Number of measuring points: | 1 |
| Number of measuring ranges: | 1 |
| Type of power supply: | Other |
| Type of electric connection: | Other |
| Rated supply voltage AC: | 21.6 - 26.4 V |
| Rated supply voltage DC: | 21.6 - 26.4 V |
| Number of output signals: | 1 |
| Number of output ranges 0 V ... 5 V: | 0 |
| Number of output ranges 0 V ... 10 V: | 1 |
| Number of output ranges 2 V ... 10 V: | 0 |
| Number of output ranges 0 mA ... 20 mA: | 0 |
